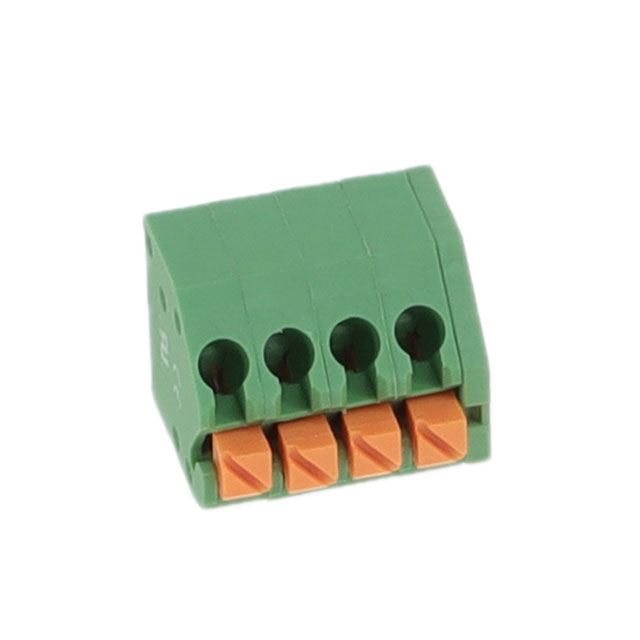

TBL002A-350-04GR-2OR

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 3.50,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TBL002A-350-04GR-2OR

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 3.50,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBL002A-350-04GR-2OR

Color	Green
Contact Material - Plating [custom]	Tin Plated
Contact Material - Plating [custom]	Phosphor Bronze
Current	2 A
Features	Push Button Actuated, Interlocking (Side)
Mating Orientation	135 °
Mating Orientation	45 °
Mounting Type	Through Hole, Kinked Pin
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	4
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG
Wire Termination	Screwless - Push Button Clamp

TBL002A Series

Part	Number of Levels	Mating Orientation	Mating Orientation	Features	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Current	Positions Per Level	Mounting Type	Wire Termination	Color	Voltage
CUI Devices TBL002A-350-03GR-2OR	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	3	Kinked Pin Through Hole	Screwless - Push Button Clamp	Green	300 V
CUI Devices TBL002A-350-04GR-2OR	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	4	Kinked Pin Through Hole	Screwless - Push Button Clamp	Green	300 V
CUI Devices TBL002A-350-02GY-2GY	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	2	Kinked Pin Through Hole	Screwless - Push Button Clamp	Gray	300 V
CUI Devices TBL002A-350-08GY-2GY	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	8	Kinked Pin Through Hole	Screwless - Push Button Clamp	Gray	300 V
CUI Devices TBL002A-350-12GY-2GY	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	12	Kinked Pin Through Hole	Screwless - Push Button Clamp	Gray	300 V
CUI Devices TBL002A-350-14GY-2GY	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	14	Kinked Pin Through Hole	Screwless - Push Button Clamp	Gray	300 V
CUI Devices TBL002A-350-08GR-2OR	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	8	Kinked Pin Through Hole	Screwless - Push Button Clamp	Green	300 V
CUI Devices TBL002A-350-04GY-2GY	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	4	Kinked Pin Through Hole	Screwless - Push Button Clamp	Gray	300 V
CUI Devices TBL002A-350-09GY-2GY	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	9	Kinked Pin Through Hole	Screwless - Push Button Clamp	Gray	300 V
CUI Devices TBL002A-350-13GY-2GY	1	135 °	45 °	Interlocking (Side) Push Button Actuated	Tin Plated	Phosphor Bronze	-40 °C	105 ░C	3.5 mm	0.138 in	20 AWG	24 AWG	2 A	13	Kinked Pin Through Hole	Screwless - Push Button Clamp	Gray	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.94
		10	$ 0.59
		25	$ 0.50
		40	$ 0.45
		126	$ 0.44
		252	$ 0.38
		504	$ 0.36
		1008	$ 0.32
		4914	$ 0.25

Description

General part information

TBL002A Series

4 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole, Kinked Pin
