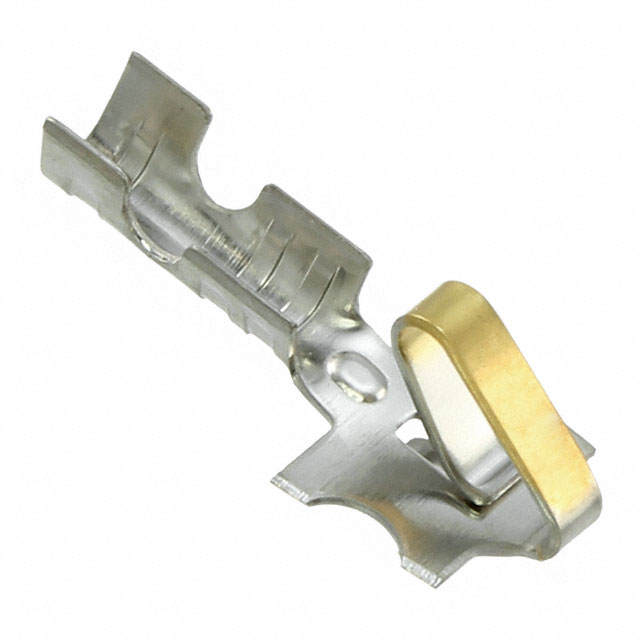

0008650815
ActiveMolex
CONN 22-30AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0008650815
ActiveMolex
CONN 22-30AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0008650815 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Termination | Crimp |
| Pin or Socket | Non-Gendered |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 22 AWG |
000865 Series
| Part | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|
Molex | Crimp | 15 µin | 0.38 µm | Non-Gendered | Gold | 30 AWG | 22 AWG |
Molex | Crimp | 15 µin | 0.38 µm | Non-Gendered | Gold | 30 AWG | 22 AWG |
Molex | Crimp | 50 µin | 1.27 µm | Non-Gendered | Gold | 30 AWG | 22 AWG |
Molex | Crimp | 100 µin | 2.54 µm | Non-Gendered | Tin | 30 AWG | 22 AWG |
Molex | Crimp | 15 µin | 0.38 µm | Non-Gendered | Gold | 22 AWG | 17.5 AWG |
Molex | Crimp | 30 Áin | 0.76 Ám | Non-Gendered | Gold | 30 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.07 | ||
Description
General part information
000865 Series
Non-Gendered Contact Gold 22-30 AWG Crimp
