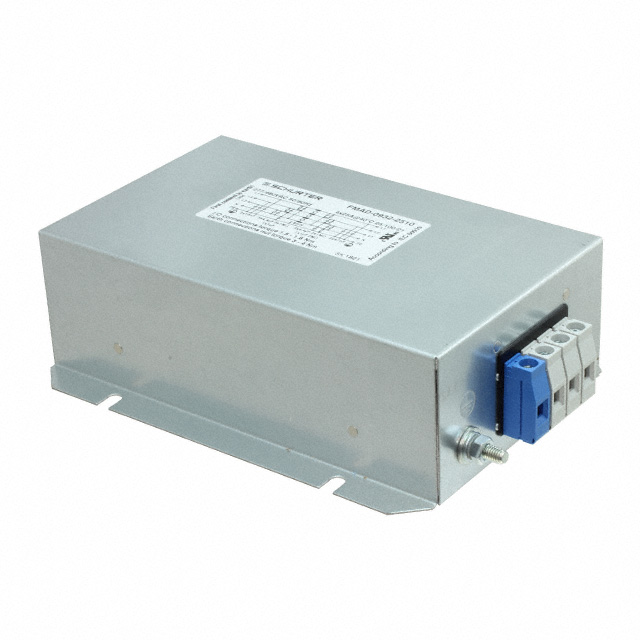

FMAD-0932-2510

Active

SCHURTER Inc.

LINE FILTER 277/480VAC 25A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMAD-0932-2510

Active

SCHURTER Inc.

LINE FILTER 277/480VAC 25A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FMAD-0932-2510

Applications	General Purpose
Approval Agency	cURus, VDE
Configuration	Single Stage
Current	25 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	2.6 mH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	277 V, 480 V

FMAD Series

Part	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type	Filter Type	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]	Termination Style	Current	Configuration	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC	Inductance	Operating Temperature [custom]
SCHURTER Inc. FMAD-395D-K312	General Purpose	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)	520 V	300 V	Terminal Block	230 A	Single Stage	cURus ENEC VDE	100 °C	-40 °C
SCHURTER Inc. FMAD-36SZ-1042.SP	Photovoltaic Inverter	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)	520 V	300 V	Terminal Block	10 A	Single Stage	cURus ENEC VDE	100 °C	-40 °C
SCHURTER Inc. FMAD-34SZ-0342.HP	Photovoltaic Inverter	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)	520 V	300 V	Terminal Block	3 A	Single Stage	cURus ENEC VDE	100 °C	-40 °C
SCHURTER Inc. FMAD-0932-2510	General Purpose	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)			Terminal Block	25 A	Single Stage	cURus VDE			277 V 480 V	2.6 mH	-25 °C 100 °C
SCHURTER Inc. FMAD-395C-8012	General Purpose	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)	520 V	300 V	Terminal Block	80 A	Single Stage	cURus ENEC VDE	100 °C	-40 °C
SCHURTER Inc. FMAD-0934-3610	General Purpose	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)			Terminal Block	36 A	Single Stage	cURus VDE			277 V 480 V	1.8 mH	-25 °C 100 °C
SCHURTER Inc. FMAD-395A-1612	General Purpose	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)	520 V	300 V	Terminal Block	16 A	Single Stage	cURus ENEC VDE	100 °C	-40 °C
SCHURTER Inc. FMAD-345B-6412	General Purpose	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)	520 V	300 V	Terminal Block	64 A	Single Stage	cURus ENEC VDE	100 °C	-40 °C
SCHURTER Inc. FMAD-0934-5010	General Purpose	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)			Terminal Block	50 A	Single Stage	cURus VDE			277 V 480 V	800 µH	-25 °C 100 °C
SCHURTER Inc. FMAD-36SZ-0642.SP	Photovoltaic Inverter	60 Hz	50 Hz	Chassis Mount	Three Phase (Wye)	520 V	300 V	Terminal Block	6 A	Single Stage	cURus ENEC VDE	100 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 367.82

Description

General part information

FMAD Series

Three Phase (Wye) EMC/EMI Line Filter 25 A 277V, 480V 50/60Hz Single Stage Terminal Block
