BEA878N0000050A000

Active

TE Intercontec

CONN RCPT HSG MALE 7POS PNL MNT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 7POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	BEA878N0000050A000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M17-7
Shielding	Unshielded
Type	For Male Pins

Part	Shell Material	Note	Shell Size - Insert	Type	Mounting Feature	Connector Type	Fastening Type	Housing Color	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Shape	Shielding	Ingress Protection	Includes	Number of Positions	Orientation	Material Flammability Rating
TE Intercontec BEA878N0000050A000	Zinc Die Cast	Contacts Not Included	M17-7	For Male Pins	Flange	Receptacle Housing	Push-Twist	Silver	Nickel	-20 C	130 °C	Polybutylene Terephthalate (PBT)	Circular	Unshielded	IP66/IP67	1 Connector 1 O-Ring	7	Keyed	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

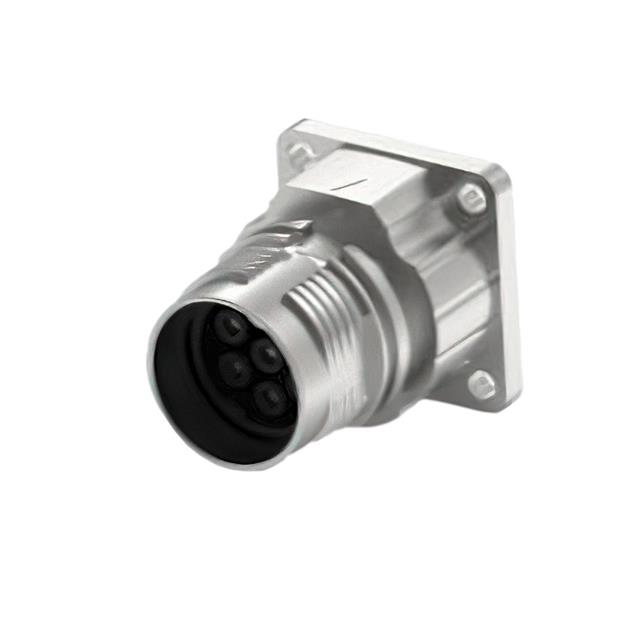

7 (6 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
