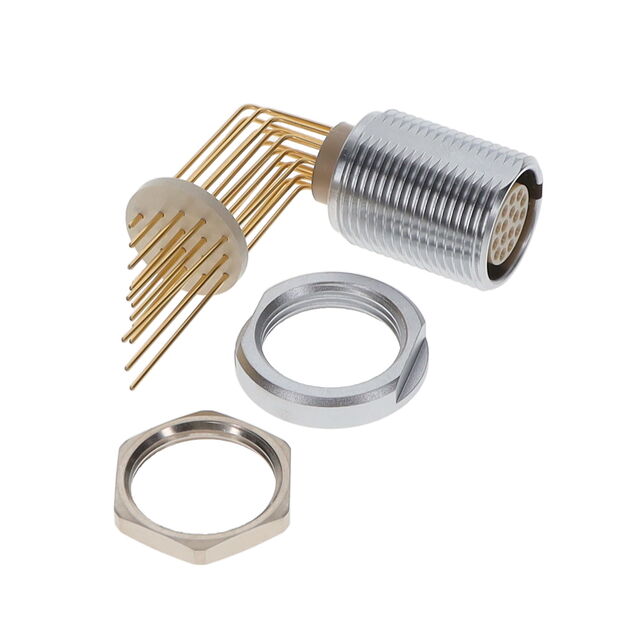

G52L0C-P16QF00-A000

Active

ODU

ODU MINI-SNAP RECEPT, STY 5, SZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G52L0C-P16QF00-A000

Active

ODU

ODU MINI-SNAP RECEPT, STY 5, SZ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G52L0C-P16QF00-A000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	16
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Unshielded
Termination	Solder
Voltage Rating	366 V

G52L0C-P Series

Part	Fastening Type	Number of Positions	Voltage Rating	Shell Finish	Color	Primary Material	Contact Finish - Mating	Mounting Feature	Shell Size - Insert	Applications	Current Rating (Amps)	Shell Material	Insert Material	Features	Contact Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Ingress Protection	Mounting Type	Termination	Number of Positions
ODU G52L0C-P16LFG0-0000	Push-Pull	16	300 VDC	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50
ODU G52L0C-P06QP00-A000	Push-Pull		500 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	12 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50	Panel Mount Through Hole	Solder	6
ODU G52L0C-P12QF00-A000	Push-Pull		450 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	6 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50	Panel Mount Through Hole	Solder	12
ODU G52L0C-P16QF00-A000	Push-Pull	16	366 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	6 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50	Panel Mount Through Hole	Solder
ODU G52L0C-P14LFG0-0000	Push-Pull		366 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50			14
ODU G52L0C-P03NSN0-0000	Push-Pull		650 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	21 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50		Crimp
ODU G52L0C-P03QS00-A000	Push-Pull		800 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	16 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50	Panel Mount Through Hole	Solder
ODU G52L0C-P12QF00-0000	Push-Pull		450 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	6 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50	Panel Mount Through Hole	Solder	12
ODU G52L0C-P14NFG0-0000	Push-Pull		366 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50		Crimp	14
ODU G52L0C-P12NFG0-0000	Push-Pull		400 V	Chrome over Nickel	Silver	Metal	Gold	Bulkhead - Front or Rear Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	Polyetheretherketone (PEEK)	Ground	Brass	Unshielded	-40 °C	120 °C	Receptacle Female Sockets	IP50		Crimp	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.52

Description

General part information

G52L0C-P Series

16 Position Circular Connector Receptacle, Female Sockets Solder
