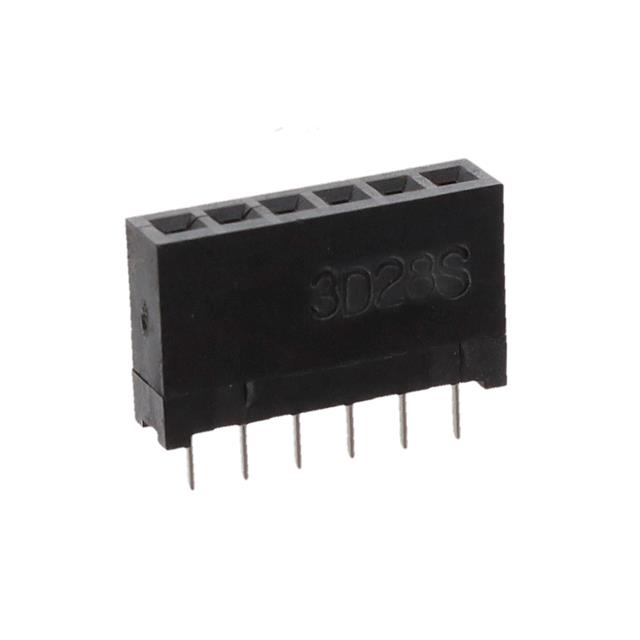

HIF3H-6SA-2.54DSA(61)

Active

Hirose Electric USA, Inc.

CONN RCPT 6POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3H-6SA-2.54DSA(61)

Active

Hirose Electric USA, Inc.

CONN RCPT 6POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3H-6SA-2.54DSA(61)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	9.5 mm
Insulation Height	0.374 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VAC

HIF3H Series

Headers & Wire Housings 24P R/A PIN HEADER B2B PHOS BRZ CNGE FN

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Current Rating (Amps)	Contact Shape	Overall Contact Length	Overall Contact Length	Connector Type	Material Flammability Rating	Number of Positions Loaded	Insulation Material	Termination	Contact Finish - Post	Shrouding	Fastening Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Voltage Rating	Number of Positions	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Contact Length - Post [x]	Current Rating (Amps)	Style
Hirose Electric USA, Inc. HIF3H-30PB-2.54DSA(71)	2 çm	78.7 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	3.5 mm	0.138 in	Gold	3 A	Square	0.591 in	15 mm	Header	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder	Tin	Unshrouded	Push-Pull	7 mm	0.276 in	2	0.177 in	4.5 mm	Through Hole	Brass	0.203 Ám	8 Áin	Male Pin	300 VDC	30	Black	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3H-24DB-2.54DS(71)	1 çm	39.4 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	3.2 mm		Gold	3 A	Square			Receptacle	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder	Tin					2	0.236 in	6 mm	Through Hole Right Angle	Phosphor Bronze	0.203 Ám	8 Áin	Female Socket	300 VAC	24	Black	85 °C	-55 °C	General Purpose	0.126 in
Hirose Electric USA, Inc. HIF3H-30PB-2.54DSA(61)	2 çm	78.7 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	3.5 mm	0.138 in	Gold		Square	0.591 in	15 mm	Header	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder	Tin	Shrouded - 4 Wall	Push-Pull	7 mm	0.276 in	2	0.177 in	4.5 mm	Through Hole	Brass	0.203 Ám	8 Áin	Male Pin	200 V	30	Black	85 °C	-55 °C			Varies by Wire Gauge	Board to Cable/Wire
Hirose Electric USA, Inc. HIF3H-34DB-2.54DS(71)	1 çm	39.4 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	3.2 mm		Gold	3 A	Square			Receptacle	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder	Tin					2	0.236 in	6 mm	Through Hole Right Angle	Phosphor Bronze	0.203 Ám	8 Áin	Female Socket	300 VAC	34	Black	85 °C	-55 °C	General Purpose	0.126 in
Hirose Electric USA, Inc. HIF3H-26P-2.54W	0.203 µm	8 µin	0.1 in	2.54 mm	2.54 mm	0.1 in	16 mm	0.63 in	Gold	3 A	Square	1.043 in	26.5 mm	Header	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Wire Wrap	Gold	Unshrouded	Push-Pull	7 mm	0.276 in	2	0.177 in	4.5 mm	Through Hole	Brass	0.203 Ám	8 Áin	Male Pin	300 VDC	26	Black	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3H-18DB-2.54DS(71)	1 çm	39.4 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	3.2 mm		Gold	3 A	Square			Receptacle	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder	Tin					2	0.236 in	6 mm	Through Hole Right Angle	Phosphor Bronze	0.203 Ám	8 Áin	Female Socket	300 VAC	18	Black	85 °C	-55 °C	General Purpose	0.126 in
Hirose Electric USA, Inc. HIF3H-50DA-2.54DSA(75)			0.1 in	2.54 mm	2.54 mm	0.1 in	3 mm	0.118 in	Gold	3 A	Square			Receptacle	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder						2	0.374 in	9.5 mm	Through Hole	Phosphor Bronze			Female Socket	300 VAC	50	Black	85 °C	-55 °C	General Purpose
Hirose Electric USA, Inc. HIF3H-60DB-2.54DS(61)	1 çm	39.4 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	3.2 mm		Gold	3 A	Square			Receptacle	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder	Tin		Push-Pull			2	0.236 in	6 mm	Through Hole Right Angle	Phosphor Bronze	0.203 Ám	8 Áin	Female Socket	300 VAC	60	Black	85 °C	-55 °C		0.126 in		Board to Cable/Wire
Hirose Electric USA, Inc. HIF3H-6SA-2.54DSA(61)	1 çm	39.4 çin	0.1 in	2.54 mm			3 mm	0.118 in	Gold	3 A	Square			Receptacle	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder	Tin		Push-Pull			1	0.374 in	9.5 mm	Through Hole	Phosphor Bronze	0.203 Ám	8 Áin	Female Socket	300 VAC	6	Black	85 °C	-55 °C				Board to Cable/Wire
Hirose Electric USA, Inc. HIF3H-60DB-2.54DS(71)	1 çm	39.4 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	3.2 mm		Gold	3 A	Square			Receptacle	UL94 V-0	All	Polybutylene Terephthalate (PBT)	Solder	Tin					2	0.236 in	6 mm	Through Hole Right Angle	Phosphor Bronze	0.203 Ám	8 Áin	Female Socket	300 VAC	60	Black	85 °C	-55 °C	General Purpose	0.126 in
