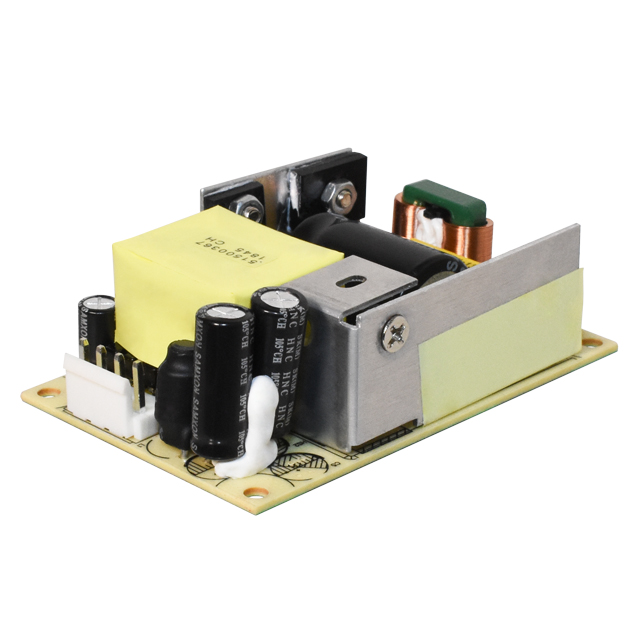

VOF-60C-S24

CUI Inc.

AC/DC CONVERTER 24V 60W

Search across all available documentation for this part.

CUI Inc.

AC/DC CONVERTER 24V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Number of Outputs	Mounting Type	Voltage - Isolation	Efficiency	Current - Output 1	Standard Number	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Approval Agency
CUI Inc. VOF-60C-S9	ITE (Commercial)	1	Chassis Mount	3000 V	83 %	6.6 A	55024 55032 Class A 62368-1	Open Frame	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C	59 W	Universal Input	264 VAC 370 VDC	85 VAC 100 V	9 V	CB Scheme EN IEC UL
CUI Inc. VOF-60C-S24	ITE (Commercial)	1	Chassis Mount	3000 V	87 %	2.5 A	55024 55032 Class A 62368-1	Open Frame	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C		Universal Input	264 VAC 370 VDC	85 VAC 100 V	24 V	CB Scheme EN IEC UL
CUI Inc. VOF-60C-S5	ITE (Commercial)	1	Chassis Mount	3000 V	80 %	10 A	55024 55032 Class A 62368-1	Open Frame	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C	50 W	Universal Input	264 VAC 370 VDC	85 VAC 100 V	5 V	CB Scheme EN IEC UL
CUI Inc. VOF-60C-S12	ITE (Commercial)	1	Chassis Mount	3000 V	85 %	5 A	55024 55032 Class A 62368-1	Open Frame	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	-25 °C	70 °C		Universal Input	264 VAC 370 VDC	85 VAC 100 V	12 V	CB Scheme EN IEC UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC, 100 ~ 370 VDC Input
