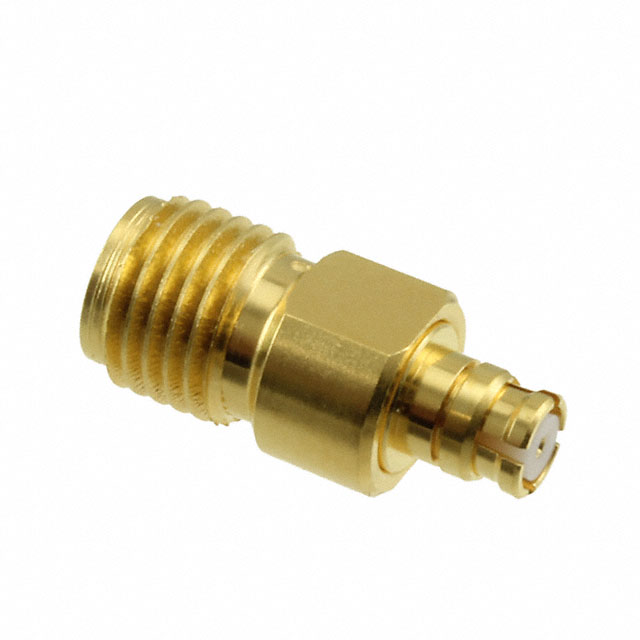

HRMJ-SMPJ-18G
ActiveHirose Electric USA, Inc.
CONN ADAPT SMA JACK-PO40G JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HRMJ-SMPJ-18G |
|---|---|
| Adapter Series | SMA to PO40G |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | PO40G Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 72.16 | |
| 40 | $ 67.07 | |||
| 100 | $ 63.37 | |||
Description
General part information
HRMJ-SMP Series
Adapter Coaxial Connector SMA Jack, Female Socket To PO40G Jack, Female Socket 50 Ohms
