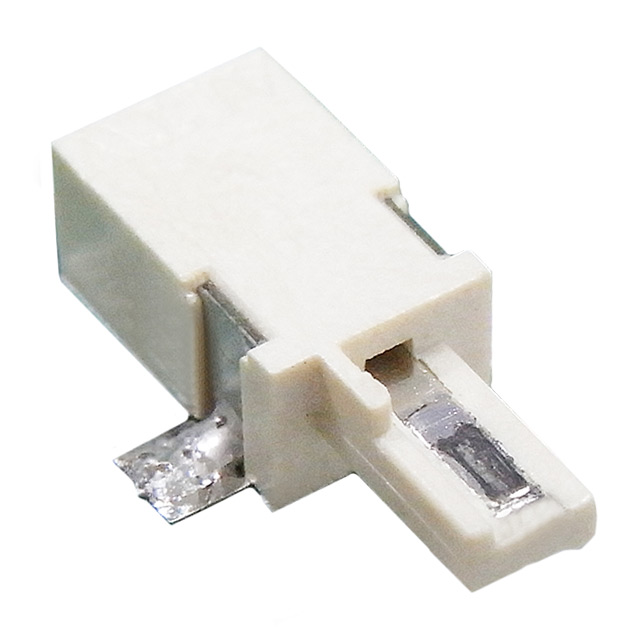

SSL11-P2D00-000001

Active

Amphenol LTW

CONN SSL PLUG 2POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

SSL11-P2D00-000001

Active

Amphenol LTW

CONN SSL PLUG 2POS SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSL11-P2D00-000001

Connector Type	Plug, Non-Gendered
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Features	Solder Retention
Housing Color	White
Housing Material	Thermoplastic
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	100 V

SSL11 Series

Part	1st Connector	1st Connector	Color	Length [x]	Length [x]	2nd Connector	2nd Connector	Mounting Type	Current Rating (Amps)	Number of Positions	Fastening Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Contact Finish	Features	Housing Material	Style	Contact Material	Connector Type	Termination	Ingress Protection	Length	Length	2nd Connector [custom]	2nd Connector [custom]
Amphenol LTW SSL11-P6L2P-022D06	Plug	6 Position	Blue White	23.6 in	600 mm	6 Position	Plug
Amphenol LTW SSL11-J2A00-000001								Surface Mount	3 A	2	Detent Lock	100 V	125 °C	-40 °C	Natural	Gold	Board Guide Pick and Place Solder Retention	Thermoplastic	Board to Board Cable	Copper Alloy	Jack Housing for Pin Contact	Solder	IP68
Amphenol LTW SSL11-P2LJP-T22D06	Plug	2	Blue White	23.6 in	600 mm		Socket 2 Position										Latch Lock
Amphenol LTW SSL11-J6LJ0-022A02	Socket	6 Position	Multiple	7.87 "	200 mm		Wire Leads
Amphenol LTW SSL11-P2D00-000001								Surface Mount Right Angle	3 A	2	Detent Lock	100 V	105 ░C	-40 °C	White	Gold	Solder Retention	Thermoplastic	Board to Board Cable	Copper Alloy	Plug Non-Gendered	Solder
Amphenol LTW SSL11-P6LP0-B22A01	Plug	6 Position	Multiple				Wire Leads										Latch Lock							3.94 in	100 mm
Amphenol LTW SSL11-P4LJP-T22D06	Plug	4 Position	Blue White	23.6 in	600 mm	4 Position	Socket										Latch Lock
Amphenol LTW SSL11-P6D00-000001								Surface Mount	3 A	6	Detent Lock	100 V	105 ░C	-40 °C	Natural	Gold	Pick and Place Solder Retention	Thermoplastic	Board to Board Cable	Copper Alloy	Plug Non-Gendered	Solder	IP68
Amphenol LTW SSL11-J2L2J-T22D06	Socket	2	Blue White	23.6 in	600 mm		Socket 2 Position										Latch Lock
Amphenol LTW SSL11-P6LJP-T22D06	Plug	6 Position	Blue White	23.6 in	600 mm												Latch Lock									6 Position	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.27
		10	$ 0.68
		25	$ 0.56
		50	$ 0.50
		100	$ 0.45
		250	$ 0.40
		500	$ 0.38
	Digi-Reel®	1	$ 1.27
		10	$ 0.68
		25	$ 0.56
		50	$ 0.50
		100	$ 0.45
		250	$ 0.40
		500	$ 0.38
	Tape & Reel (TR)	1200	$ 0.36
		2400	$ 0.34
		3600	$ 0.34
		6000	$ 0.33
		8400	$ 0.33
		12000	$ 0.33
		30000	$ 0.32

Description

General part information

SSL11 Series

SSL Connector 2 Position Plug, Non-Gendered Board to Board or Cable Solder

Documents

Technical documentation and resources

No documents available
