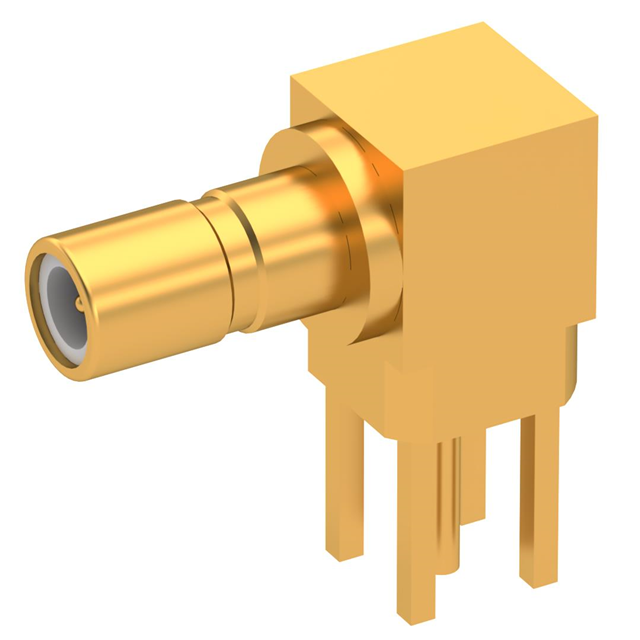

7210-1511-000

Active

Radiall USA, Inc.

SSMB M RA NA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB M RA NA

Technical Specifications

Parameters and characteristics for this part

Specification	7210-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Connector Style	Housing Color	Body Finish	Center Contact Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Contact Termination	Mounting Type	Connector Type	Voltage Rating	Shield Termination	Frequency - Max [Max]	Dielectric Material	Mating Cycles	Impedance	Body Material	Fastening Type
Radiall USA, Inc. 7210-1511-019	SSMB	Gold	Gold	Beryllium Copper	Gold	-65 ░C	165 °C	1	Solder	Through Hole Right Angle	Male Pin Receptacle	250 VDC	Solder	12.4 GHz	Polytetrafluoroethylene (PTFE)	500	50 Ohms	Brass	Snap-On
Radiall USA, Inc. 7210-1511-050	SSMB	Gold	Gold	Beryllium Copper	Gold	-65 ░C	165 °C	1	Solder	Through Hole Right Angle	Jack Male Pin	250 VDC	Solder	12.4 GHz	Polytetrafluoroethylene (PTFE)	500	50 Ohms	Brass	Snap-On
Radiall USA, Inc. 7210-1511-000	SSMB	Gold	Gold	Beryllium Copper	Gold	-65 ░C	165 °C	1	Solder	Through Hole Right Angle	Jack Male Pin	250 VDC	Solder	12.4 GHz	Polytetrafluoroethylene (PTFE)	500	50 Ohms	Brass	Snap-On
Radiall USA, Inc. 7210-1511-040	SSMB	Gold	Gold	Beryllium Copper	Gold	-65 ░C	165 °C	1	Solder	Through Hole Right Angle	Jack Male Pin	250 VDC	Solder	12.4 GHz	Polytetrafluoroethylene (PTFE)	500	50 Ohms	Brass	Snap-On
Radiall USA, Inc. 7210-1511-015	SSMB	Gold	Gold	Beryllium Copper	Gold	-65 ░C	165 °C	1	Solder	Surface Mount Right Angle	Jack Male Pin	250 VDC	Solder	12.4 GHz	Polytetrafluoroethylene (PTFE)	500	50 Ohms	Brass	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
