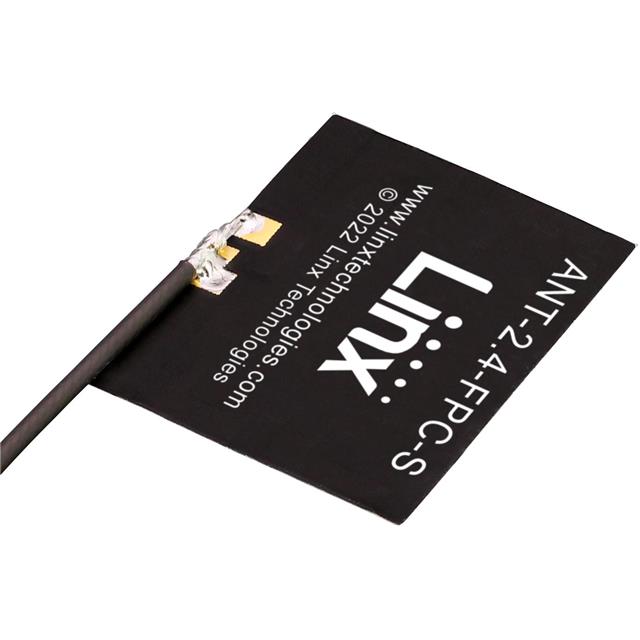

ANT-2.4-FPC-SF150M4

Active

TE Connectivity Linx

ANT 2.4 FPC 25X20 150 CBL MHF4

Search across all available documentation for this part.

Active

TE Connectivity Linx

ANT 2.4 FPC 25X20 150 CBL MHF4

Technical Specifications

Parameters and characteristics for this part

Part	Power - Max [Max]	Height (Max)	Height (Max) [Max]	Features	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Gain	Mounting Type	Applications	Termination	VSWR	Number of Bands	Features
TE Connectivity Linx ANT-2.4-FPC-SF150M4	2 W	0.1 mm	0.004 in	Cable - 150mm	PCB Trace	2.5 GHz	2.4 GHz	3.9 dBi	Adhesive	Bluetooth ISM Wi-Fi Zigbee™	MHF4	1.9	1
TE Connectivity Linx ANT-2.4-FPC-SF100UF	2 W	0.1 mm	0.004 in	Cable	PCB Trace	2.5 GHz	2.4 GHz	3.9 dBi	Adhesive	Bluetooth ISM Wi-Fi Zigbee™	IPEX MHF1 (U.FL)	1.9	1	100 mm
TE Connectivity Linx ANT-2.4-FPC-SF100M4	2 W	0.1 mm	0.004 in	Cable	PCB Trace	2.5 GHz	2.4 GHz	3.9 dBi	Adhesive	Bluetooth ISM Wi-Fi Zigbee™	MHF4	1.9	1	100 mm
TE Connectivity Linx ANT-2.4-FPC-SF200M4	2 W	0.1 mm	0.004 in	Cable	PCB Trace	2.5 GHz	2.4 GHz	3.9 dBi	Adhesive	Bluetooth ISM Wi-Fi Zigbee™	MHF4	1.9	1	200 mm
TE Connectivity Linx ANT-2.4-FPC-SF50M4	2 W	0.1 mm	0.004 in	Cable	PCB Trace	2.5 GHz	2.4 GHz	3.9 dBi	Adhesive	Bluetooth ISM Wi-Fi Zigbee™	MHF4	1.9	1	50 mm
TE Connectivity Linx ANT-2.4-FPC-SF50UF	2 W	0.1 mm	0.004 in	Cable	PCB Trace	2.5 GHz	2.4 GHz	3.9 dBi	Adhesive	Bluetooth ISM Wi-Fi Zigbee™	IPEX MHF1 (U.FL)	1.9	1	50 mm
TE Connectivity Linx ANT-2.4-FPC-SF200UF	2 W	0.1 mm	0.004 in	Cable	PCB Trace	2.5 GHz	2.4 GHz	3.9 dBi	Adhesive	Bluetooth ISM Wi-Fi Zigbee™	IPEX MHF1 (U.FL)	1.9	1	200 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2000	$ 2.95

General part information

RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ PCB Trace MHF4 Adhesive
