EVB90367-REV1.0

Active

Melexis Technologies NV

EVAL BOARD MLX90367

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVB90367-REV1.0

Embedded	False
Sensing Range [Max]	70 mT
Sensing Range [Min]	20 mT
Sensor Type	Magnetic, Linear, Rotary Position
Supplied Contents	Board(s)
Utilized IC / Part	MLX90367
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

MLX90367 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	For Measuring	Termination Style	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Actuator Type	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Technology	Sensor Type	Sensing Range [Max]	Sensing Range [Min]	Utilized IC / Part	Supplied Contents
Melexis Technologies NV MLX90367KDC-ABV-000-SP	125 °C	-40 °C	4.5 V	5.5 V	8-SOIC	Linear Rotary Position	Gull Wing	8-SOIC	3.9 mm	0.154 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect
Melexis Technologies NV EVB90367-REV1.0			4.5 V	5.5 V												Linear Magnetic Rotary Position	70 mT	20 mT	MLX90367	Board(s)
Melexis Technologies NV MLX90367EGO-ABU-000-SP	85 °C	-40 °C	4.5 V	5.5 V	16-TSSOP	Linear Rotary Position	Gull Wing	16-TSSOP	4.4 mm	0.173 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect
Melexis Technologies NV MLX90367KGO-ABS-090-RE	125 °C	-40 °C	4.5 V	5.5 V	16-TSSOP	Linear Rotary Position	Gull Wing	16-TSSOP	4.4 mm	0.173 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect
Melexis Technologies NV MLX90367LDC-ABU-000-TU			4.5 V	5.5 V	8-SOIC	Linear Rotary Position	Gull Wing	8-SOIC	3.9 mm	0.154 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect
Melexis Technologies NV MLX90367LDC-ABU-000-RE			4.5 V	5.5 V	8-SOIC	Linear Rotary Position	Gull Wing	8-SOIC	3.9 mm	0.154 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect
Melexis Technologies NV MLX90367KDC-ABV-000-RE	125 °C	-40 °C	4.5 V	5.5 V	8-SOIC	Linear Rotary Position	Gull Wing	8-SOIC	3.9 mm	0.154 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect
Melexis Technologies NV MLX90367LDC-ABU-000-SP			4.5 V	5.5 V	8-SOIC	Linear Rotary Position	Gull Wing	8-SOIC	3.9 mm	0.154 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect
Melexis Technologies NV MLX90367EDC-ABV-000-RE	85 °C	-40 °C	4.5 V	5.5 V	8-SOIC	Linear Rotary Position	Gull Wing	8-SOIC	3.9 mm	0.154 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect
Melexis Technologies NV MLX90367LGO-ABU-000-RE			4.5 V	5.5 V	16-TSSOP	Linear Rotary Position	Gull Wing	16-TSSOP	4.4 mm	0.173 in	Surface Mount	External Magnet Not Included	360 °	0 °	Hall Effect

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.02

Description

General part information

MLX90367 Series

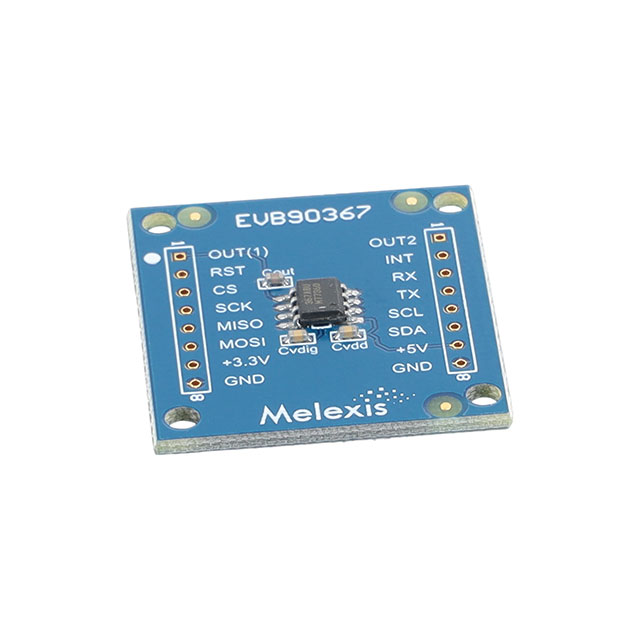

MLX90367 Triaxis® Magnetic, Linear, Rotary Position Sensor Evaluation Board
