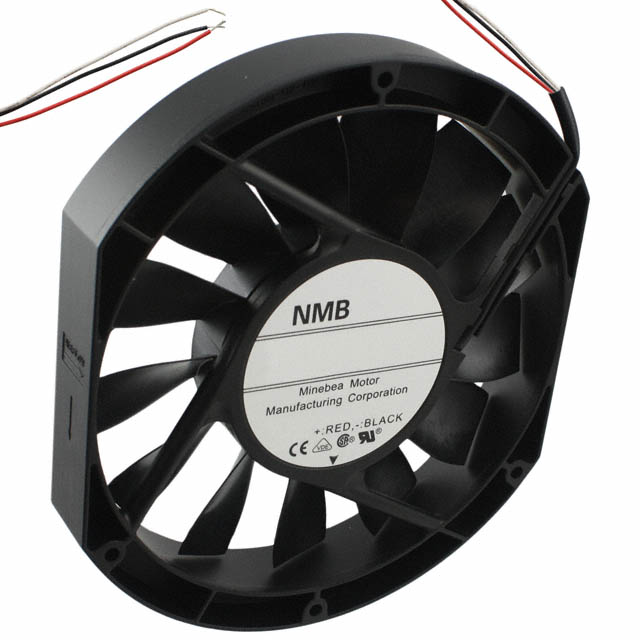

15025PA-48Q-AL-C0

Active

NMB TECHNOLOGIES

FAN AXIAL 172X25.4MM 48VDC WIRE

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL 172X25.4MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Air Flow	Air Flow	Noise	Material - Frame	Termination	Material - Blade	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Fan Type	Approval Agency	Bearing Type	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	RPM	Weight	Weight	Width [y]	Features	Voltage - Rated [custom]	Termination	Lifetime @ Temp.
NMB TECHNOLOGIES 15025PA-12N-AA-00	2.06 A	70 °C	70 °C	-10 °C	-10 °C	0.657 in H2O	163.7 Pa	7 mł/min	250 CFM	62.5 dB	Aluminum	2 Wire Leads	Plastic	Rectangular/Rounded	150 mm	172 mm	12 VDC	Tubeaxial	CE CSA UL VDE	Ball	24.7 W	18 VDC	6 VDC	3500 RPM	500 g	1.1 lbs	25.4 mm
NMB TECHNOLOGIES 15025PA-48Q-AL-C0	0.74 A	70 °C	70 °C	-10 °C	-10 °C	0.935 in H2O	233 Pa	8.12 m³/min	290 CFM	65.4 dB(A)	Aluminum	3 Wire Leads	Plastic	Rectangular/Rounded	150 mm	172 mm		Tubeaxial	CE CSA UL VDE	Ball	35.5 W	60 V	25 VDC	4100 RPM	500 g	1.1 lbs	25.4 mm	Locked Rotor Sensor	48 VDC
NMB TECHNOLOGIES 15025PA-12N-AT-00		70 °C	70 °C	-10 °C	-10 °C						Aluminum		Plastic	Rectangular/Rounded	150 mm	172.7 mm	12 VDC	Tubeaxial		Ball							25.4 mm	Auto Restart Speed Sensor (Tach)		3 Terminals	100000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 60.62

General part information

Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 290.0 CFM (8.12m³/min) 3 Wire Leads
