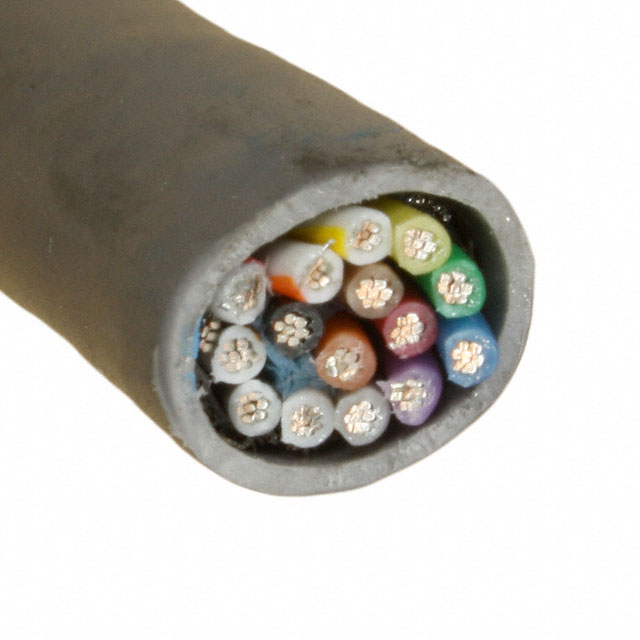

M38915 SL199

Active

ALPHA WIRE

CABLE 15COND 24AWG SLATE 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 15COND 24AWG SLATE 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M38915 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	6.83 mm
Jacket (Insulation) Diameter [diameter]	0.269 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Voltage	300 V
Wire Gauge	24 AWG

Part	Cable Type	Conductor Insulation	Conductor Material	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Number of Conductors	Length	Length	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE M38915 SL199	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	6.83 mm	0.269 in	24 AWG	15	914.4 m	3000 ft	UL Style 2464	-20 C	80 C	Slate	32 AWG	7
ALPHA WIRE M38915 SL002	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	6.83 mm	0.269 in	24 AWG	15			UL Style 2464	-20 C	80 C	Slate	32 AWG	7	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.47

General part information

15 Conductor Multi-Conductor Cable Slate 24 AWG 3000' (914.4m)
