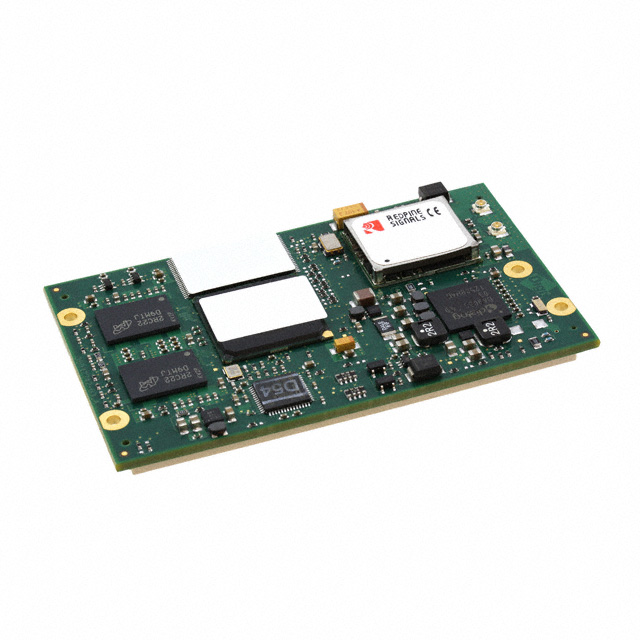

CC-WMX-LD79-VK-B

Obsolete

Digi

RF TXRX MOD WIFIU.FL CHAS MNT

Deep-Dive with AI

Search across all available documentation for this part.

CC-WMX-LD79-VK-B

Obsolete

Digi

RF TXRX MOD WIFIU.FL CHAS MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CC-WMX-LD79-VK-B

Antenna Type	Antenna Not Included, U.FL
Current - Receiving	700 mA
Current - Transmitting	700 mA
Data Rate	65 Mbps
Frequency	5 GHz, 2.4 GHz
Memory Size	1 GB, 512 MB
Modulation	QPSK, DQPSK, CCK, DBPSK, 64QAM, BPSK, 16QAM
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	17 dBm
Protocol	802.11a/b/g/n
RF Family/Standard	WiFi
Sensitivity	-94 dBm
Serial Interfaces	UART, USB, SDIO, SPI, Ethernet, I2C, JTAG, I2S
Voltage - Supply	3.75 V

CC-WMX Series

Part	Memory Size	Power - Output	RF Family/Standard	Data Rate	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	Mounting Type	Protocol	Package / Case	Antenna Type	Current - Receiving	Current - Transmitting	Modulation	Frequency	Memory Size [custom]	Memory Size [custom]	Connector Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Core Processor	Module/Board Type	Supplied Contents	Voltage - Supply	Sensitivity	Utilized IC / Part
Digi CC-WMX-L96C-TE10	4 GB 512 MB	17 dBm	Bluetooth WiFi	150 Mbps	PWM UART USB	85 °C	-40 °C	2.412 GHz 4.9 GHz	2.484 GHz 5.85 GHz	Surface Mount	802.11a/b/g/n Bluetooth v4.0	100-SMD Module
Digi CC-WMX-PE47-RM	128 MB 128 MB	17 dBm	WiFi	150 Mbps	I2C I2S JTAG PWM SPI UART USB	85 °C	-40 °C			Card Edge	802.11a/b/g/n	Module	Antenna Not Included U.FL	100 mA	406 mA	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	2.4 GHz 5 GHz
Digi CC-WMX-PF58-VM		17 dBm	Bluetooth WiFi	150 Mbps	I2C I2S JTAG PWM SPI UART USB	85 °C	-40 °C			Card Edge	802.11a/b/g/n Bluetooth v4.0	Module	Antenna Not Included U.FL	100 mA	406 mA	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	2.4 GHz 5 GHz	256 MB	256 MB
Digi CC-WMX-LD79-QTC1																				Board-to-Board (BTB) Socket - 360	82 mm	1.97 "	50 mm	3.23 "	ARM® Cortex®-A8 i.MX53	MPU Core
Digi CC-WMX-JN58-NE			Bluetooth WiFi		I2C SPI UART USB	85 °C	-40 °C			Surface Mount	802.11a/b/g/n/ac Bluetooth v4.0	Module					528 MHz	256 MB	256 MB
Digi CC-WMX6N-KIT																											Board(s)
Digi CC-WMX-LD79-VK-B	1 GB 512 MB	17 dBm	WiFi	65 Mbps	Ethernet I2C I2S JTAG SDIO SPI UART USB	85 °C	-40 °C			Chassis Mount	802.11a/b/g/n	Module	Antenna Not Included U.FL	700 mA	700 mA	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK	2.4 GHz 5 GHz											3.75 V	-94 dBm
Digi CC-WMX-PE47-VM-B	128 MB 128 MB	17 dBm	WiFi	150 Mbps	I2C I2S JTAG PWM SDIO SPI UART USB	85 °C	-40 °C	2.412 GHz 4.9 GHz	2.484 GHz 5.85 GHz	Card Edge	802.11a/b/g/n	Module	Antenna Not Included U.FL	100 mA	406 mA	16QAM 64QAM BPSK CCK DBPSK DQPSK QPSK
Digi CC-WMX-KK8D-TN	2 GB 8 GB		Bluetooth WiFi		Ethernet GPIO I2C I2S PWM SPI UART USB	85 °C	-40 °C			Surface Mount	802.11a/b/g/n/ac Bluetooth v5.0	Module					800 MHz													MKL14Z32VFT4
Digi CC-WMX-J98C-N	2 GB 4 GB		Bluetooth WiFi		Ethernet GPIO I2C I2S JTAG PWM SPI UART USB	70 °C	-20 C			Surface Mount	802.11a/b/g/n/ac Bluetooth v5.0	Module					1.2 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CC-WMX Series

WiFi 802.11a/b/g/n Transceiver Module 2.4GHz, 5GHz Antenna Not Included, U.FL Chassis Mount
