9AS7A24

Active

SQUARE D BY SCHNEIDER ELECTRIC

ELECTROMECHNICAL POWER RELAYS, S

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

ELECTROMECHNICAL POWER RELAYS, S

Technical Specifications

Parameters and characteristics for this part

Part	Load - Max Switching	Load - Max Switching	Relay Type	Coil Type	Must Release Voltage	Release Time	Coil Voltage	Termination Style	Seal Rating	Approval Agency	Contact Rating (Current)	Operate Time	Coil Current	Switching Voltage	Contact Form	Coil Resistance	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Must Operate Voltage
SQUARE D BY SCHNEIDER ELECTRIC 9AS7A24	840 W	8310 VA	General Purpose	Non Latching	4.8 VAC	10 ms	24 VAC	Quick Connect - 0.187"/0.250"	Sealed - Fully	UL	30 A	20 ms	24 mA	28 VDC 277 VAC	SPDT (1 Form C)	100 Ohms	Silver Alloy	40 °C	-40 °C	Chassis Mount
SQUARE D BY SCHNEIDER ELECTRIC 9AS7A240	840 W	8310 VA	General Purpose	Non Latching	48 VAC	10 ms	240 VAC	Quick Connect - 0.187"/0.250"	Sealed - Fully	UL	30 A	20 ms	17.8 mA	28 VDC 277 VAC	SPDT (1 Form C)	13.49 kOhms	Silver Alloy	40 °C	-40 °C	Chassis Mount	204 VAC
SQUARE D BY SCHNEIDER ELECTRIC 9AS7A120	840 W	8310 VA	General Purpose	Non Latching	24 VAC	10 ms	120 VAC	Quick Connect - 0.187"/0.250"	Sealed - Fully	UL	30 A	20 ms	48 mA	28 VDC 277 VAC	SPDT (1 Form C)	2500 Ohms	Silver Alloy	40 °C	-40 °C	Chassis Mount	102 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 27.04

General part information

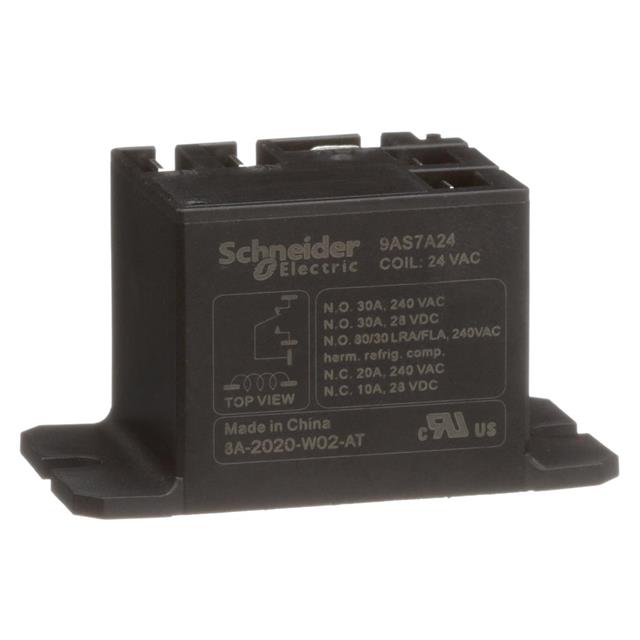

General Purpose Relay SPDT (1 Form C) 24VAC Coil Chassis Mount
