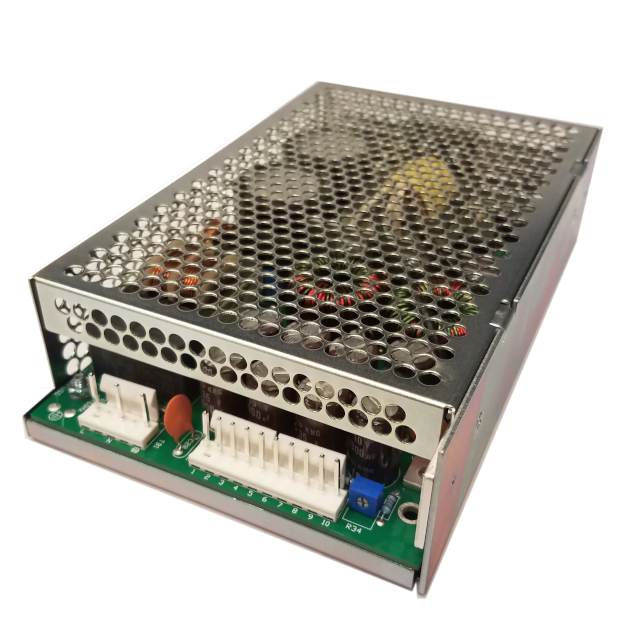

1010088CHCO

Integrated Power Designs

AC/DC CNVRTR +/-5V +/-15V 115W

Search across all available documentation for this part.

Integrated Power Designs

AC/DC CNVRTR +/-5V +/-15V 115W

Technical Specifications

Parameters and characteristics for this part

Specification	1010088CHCO

Applications	Industrial, ITE (Commercial)
Approval Agency	CE, UKCA, TUV
Current - Output 1	12 A
Current - Output 2	4 A
Current - Output 3	3 A
Current - Output 4	2 A
Efficiency	76 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	0 °C
Power (Watts)	115 W
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V
Voltage - Output 2	-5 V
Voltage - Output 3	15 V
Voltage - Output 4	-15 V

Part	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 4	Mounting Type	Voltage - Output 1	Standard Number	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Type	Efficiency	Current - Output 2	Current - Output 4	Number of Outputs	Approval Agency	Current - Output 1	Current - Output 3	Features	Voltage - Output 3	Power (Watts)
Integrated Power Designs 1010088CHCO	Industrial ITE (Commercial)	240 VAC	100 VAC	-15 V	Chassis Mount	5 V	62368-1	-5 V	0 °C	50 °C	Enclosed	76 %	4 A	2 A	4	CE TUV UKCA	12 A	3 A	Adjustable Output Universal Input	15 V	115 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 5V -5V 15V -15V 100 ~ 240 VAC Input
