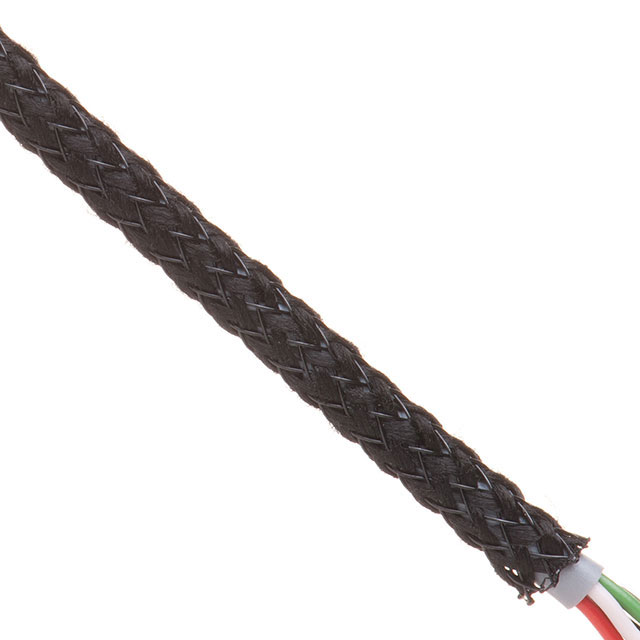

NRN0.13BK500

Active

Techflex

EXPAND SLEEVING 1/8" X 500' BLK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 1/8" X 500' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	NRN0.13BK500

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	0.187 in
Diameter - Inside, Expanded [diameter]	4.75 mm
Diameter - Inside, Non-Expanded [diameter]	0.125 in
Diameter - Inside, Non-Expanded [diameter]	3.18 mm
Features	Vibration Resistant, Noise Reduction, Clean Cut
Length [x]	500 '
Length [x]	152.4 m
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Wall Thickness [custom]	Wall Thickness [custom]	Type Attributes	Material	Color	Type	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material Flammability Rating	Length [x]	Length [x]	Abrasion Protection	Features	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
Techflex NRN0.13BK500	0.025 in	0.64 mm	Expandable	Polyethylene Terephthalate (PET) Halogen Free	Black	Sleeve	0.187 in	4.75 mm	0.125 in	3.18 mm	UL94 V-0	500 '	152.4 m	Abrasion Resistant	Clean Cut Noise Reduction Vibration Resistant	125 °C	-30 ░C
Techflex NRN0.50BK100	0.025 in	0.64 mm	Expandable	Polyethylene Terephthalate (PET) Halogen Free	Black	Sleeve	0.75 in	19.05 mm	0.5 in	12.7 mm	UL94 V-0			Abrasion Resistant	Clean Cut Noise Reduction Vibration Resistant	125 °C	-30 ░C	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 104.66

General part information

Sleeve X 500' (152.40m) Black
