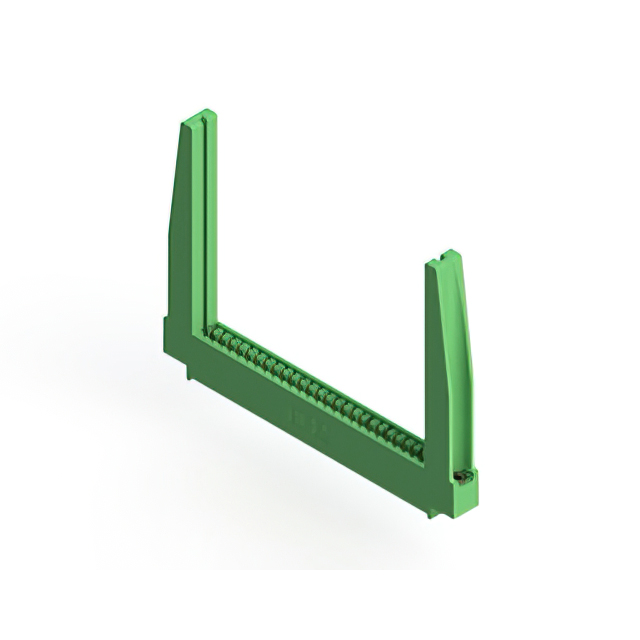

346-027-521-678
ActiveEDAC Inc.
CONN EDGE SGL FMALE 27POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-027-521-678
ActiveEDAC Inc.
CONN EDGE SGL FMALE 27POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-027-521-678 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 27 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
346-027 Series
...
| Part | Mounting Type | Pitch [x] | Pitch [x] | Number of Positions | Termination | Flange Feature | Flange Feature | Flange Feature | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Color | Gender | Contact Finish Thickness | Contact Finish Thickness | Read Out | Contact Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Number of Positions/Bay/Row [custom] | Material - Insulation | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole Right Angle | 0.125 in | 3.18 mm | 27 | Solder Wire Wrap | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | |||
EDAC Inc. | Through Hole Right Angle | 0.125 in | 3.18 mm | 27 | Solder Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | |||||
EDAC Inc. | Through Hole | 0.125 in | 3.18 mm | 27 | Wire Wrap | Flush Mount Side Opening Unthreaded | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | 3.25 mm | 0.128 " | |||
EDAC Inc. | Through Hole Right Angle | 0.125 in | 3.18 mm | 27 | Solder Wire Wrap | 3.25 mm | 0.128 in | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | ||||
EDAC Inc. | Through Hole | 0.125 in | 3.18 mm | 27 | Solder | Floating Bobbin Top Mount Opening | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Through Hole | 0.125 in | 3.18 mm | 27 | Solder | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | ||||||
EDAC Inc. | Through Hole | 0.125 in | 3.18 mm | 27 | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | Card Guides | ||||
EDAC Inc. | Through Hole | 0.125 in | 3.18 mm | 27 | Solder | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | ||||||
EDAC Inc. | Through Hole | 0.125 in | 3.18 mm | 27 | Solder | Floating Bobbin Flush Mount | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Through Hole | 0.125 in | 3.18 mm | 27 | Solder | 4-40 Threaded Insert Top Mount Opening | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | Green | Female | 10 Áin | 0.25 Ám | Single | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 27 | Polyester Thermoplastic | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 11.48 | |
Description
General part information
346-027 Series
27 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
