807-014-522-208
ActiveEDAC Inc.

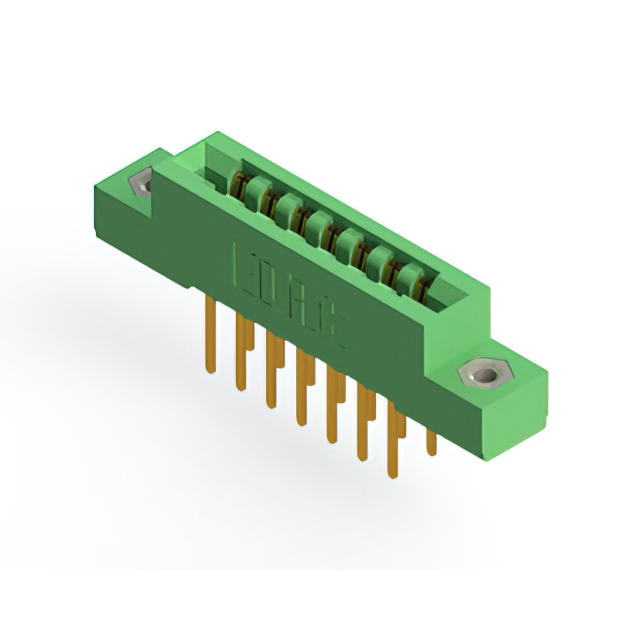

CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-014-522-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-014-522-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
807-014 Series
...
| Part | Number of Positions/Bay/Row [custom] | Mounting Type | Termination Rows | Number of Rows | Contact Type | Flange Feature | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Features | Color | Termination | Number of Positions | Contact Material | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Read Out | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 7 | Board Edge Straddle Mount | 2 | 2 | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Card Extender | Green | Solder | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | ||||
EDAC Inc. | 14 | Through Hole | 1 | 1 | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Tin | Female | 125 °C | -40 °C | Green | Solder | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Single | Non Specified - Single Edge | |||||||
EDAC Inc. | 14 | Through Hole | 1 | 1 | Semi Bellows | Flush Mount Top Opening Unthreaded | Tin | Female | 125 °C | -40 °C | Green | Solder | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Single | Non Specified - Single Edge | 3.25 mm | 0.128 " | |||||
EDAC Inc. | 7 | Through Hole | 2 | 2 | Semi Bellows | Flush Mount Top Opening Unthreaded | Gold | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Green | Solder | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | 3.25 mm | 0.128 " | |||
EDAC Inc. | 7 | Board Edge Straddle Mount | 2 | 2 | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Card Extender | Green | Solder | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | ||||
EDAC Inc. | 14 | Through Hole | 1 | 2 | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Tin | Female | 125 °C | -40 °C | Green | Solder | 28 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | |||||||
EDAC Inc. | 7 | Through Hole | 2 | 2 | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Green | Solder | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | |||||
EDAC Inc. | 7 | Through Hole | 2 | 2 | Semi Bellows | Floating Bobbin Flush Mount | Gold | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Green | Solder Eyelet(s) | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |||
EDAC Inc. | 7 | Through Hole | 2 | 2 | Semi Bellows | Side Mount Opening Unthreaded | Gold | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Green | Solder | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | 3.25 mm | 0.128 in | |||
EDAC Inc. | 7 | Through Hole | 2 | 2 | Semi Bellows | Side Mount Opening Unthreaded | Tin | Female | 125 °C | -40 °C | Green | Solder | 14 | Copper Alloy | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 41.73 | |
Description
General part information
807-014 Series
14 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
