3007W2PCT56N40X

Active

Amphenol CONEC

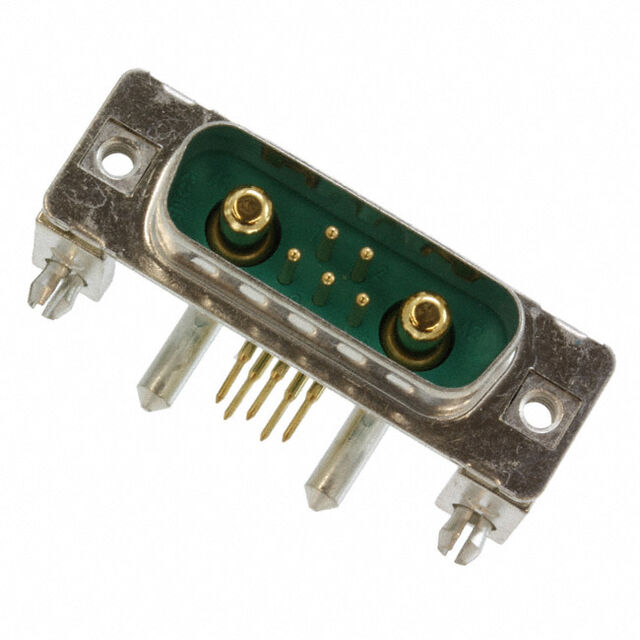

CONN D-SUB PLUG 7POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3007W2PCT56N40X

Active

Amphenol CONEC

CONN D-SUB PLUG 7POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3007W2PCT56N40X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Signal and Power
Current Rating (Amps)	20 A, 7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder

3007W2P Series

Part	Contact Finish	Shell Size, Connector Layout	Flange Feature	Termination	Dielectric Material	Connector Style	Material Flammability Rating	Features	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Mounting Type	Number of Rows	Current Rating (Amps)	Number of Positions	Contact Material	Voltage Rating	Backset Spacing	Backset Spacing	Note
Amphenol CONEC 3007W2PCR48E20X	Gold	2 (DA A) - 7W2	4-40 Board Side	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Board Lock Grounding Indents	Signal and Power	-55 °C	125 °C	0.76 Ám	30 Áin	Green	7	2	Male Pins Plug	Through Hole	2
Amphenol CONEC 3007W2PCT56N40X	Gold	2 (DA A) - 7W2	Housing/Shell (4-40)	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub			Signal and Power	-55 °C	125 °C	0.76 Ám	30 Áin	Green	7	2	Male Pins Plug	Through Hole Right Angle	2	7.5 A 20 A
Amphenol CONEC 3007W2PAU99G40X	Gold	2 (DA A) - 7W2	Housing/Shell (4-40)	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Board Lock Grounding Indents				0.203 çm	8 çin	Green			Male Pins Plug	Board Edge Right Angle Through Hole	2	7.5 A	7	Copper Alloy	250 VDC	9.4 mm	0.37 in
Amphenol CONEC 3007W2PAM99A10X	Gold	2 (DA A) - 7W2	Housing/Shell (Unthreaded)		Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Grounding Indents		-55 °C	125 °C			Green			Male Pins Plug	Free Hanging (In-Line)	2	7.5 A	7	Copper Alloy	250 VDC
Amphenol CONEC 3007W2PAR71E20X	Gold							Board Lock Grounding Indents									Male Pins Plug					Copper Alloy
Amphenol CONEC 3007W2PCT42N20X	Gold	2 (DA A) - 7W2	Housing/Shell (4-40)	Solder		Combo D-Sub		Grounding Indents Mounting Brackets	Signal and Power	-55 °C	125 °C				7	2	Male Pins Plug	Through Hole Right Angle	2
Amphenol CONEC 3007W2PCT56N20X	Gold	2 (DA A) - 7W2	Housing/Shell (4-40)	Solder		Combo D-Sub		Grounding Indents Mounting Brackets	Signal and Power	-55 °C	125 °C				7	2	Male Pins Plug	Through Hole Right Angle	2
Amphenol CONEC 3007W2PAW74N40X																	Male Pins Plug
Amphenol CONEC 3007W2PAR71AA0X		2 (DA A) - 7W2			Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0		Signal and Power	-55 °C	125 °C			Green	7	2	Male Pins Plug		2	30 A			250 VDC
Amphenol CONEC 3007W2PXK99A10X		2 (DA A) - 7W2	Housing/Shell (Unthreaded)		Polybutylene Terephthalate (PBT) Polyester	Combo D-Sub		Grounding Indents	Power Signal and Coax	-55 °C	125 °C			Black			Plug for Male Contacts	Free Hanging (In-Line)	2		7					Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.01
		10	$ 18.50
		25	$ 16.75
		50	$ 15.57
		100	$ 14.50
		250	$ 13.24
		500	$ 12.39

Description

General part information

3007W2P Series

7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
