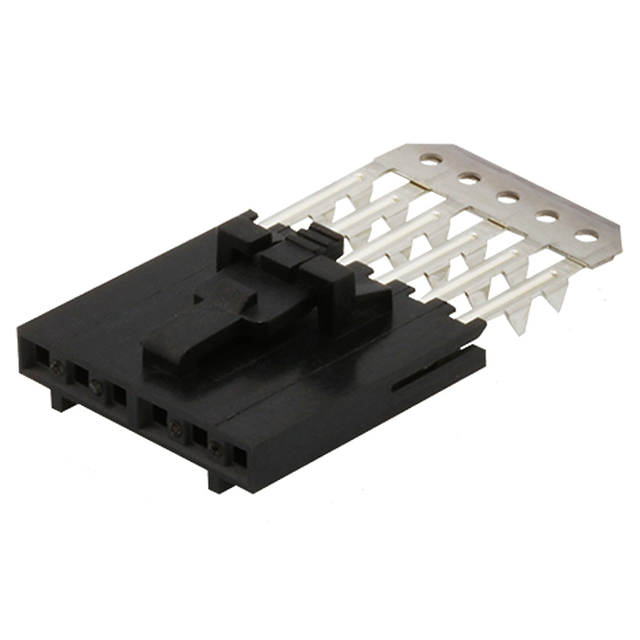

0015388120

Active

Molex

CONN CIC FFC RCPT 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0015388120

Active

Molex

CONN CIC FFC RCPT 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015388120

Cable End Type	Straight
Connector/Contact Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	150 µin
Contact Finish Thickness	150 Áin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.3 mm
FFC, FCB Thickness [Max]	0.28 mm
FFC, FCB Thickness [Min]	0.13 mm
Flat Flex Type	FFC, CIC
Housing Color	Black
Locking Feature	Latch Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	25
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	IDC
Voltage Rating	250 VDC

001538 Series

Part	Housing Material	Termination	Flat Flex Type	Mating Cycles	Locking Feature	Contact Material	FFC, FCB Thickness [Min]	FFC, FCB Thickness	FFC, FCB Thickness [Max]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Connector/Contact Type	Cable End Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Housing Color	Pitch [x]	Pitch [x]	Voltage Rating	Number of Positions
Molex 0015389042	Polybutylene Terephthalate (PBT)	IDC	CIC FFC	25	Latch Lock	Phosphor Bronze	0.005 mm	0.36 mm	0.11 mm	4	-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Plug	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC
Molex 0015389022	Polybutylene Terephthalate (PBT)	IDC	CIC FFC	25	Latch Lock	Phosphor Bronze	0.005 mm	0.36 mm	0.11 mm	2	-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Plug	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC
Molex 0015388107		IDC	CIC FFC	25		Phosphor Bronze	0.13 mm	0.3 mm	0.28 mm	10	-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Receptacle	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC
Molex 0015388148		IDC	CIC FFC	25		Phosphor Bronze	0.13 mm	0.3 mm	0.28 mm	14	-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Receptacle	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC
Molex 0015388160		IDC	CIC FFC	25	Latch Lock	Phosphor Bronze	0.13 mm	0.3 mm	0.28 mm		-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Receptacle	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC	16
Molex 0015388120		IDC	CIC FFC	25	Latch Lock	Phosphor Bronze	0.13 mm	0.3 mm	0.28 mm	12	-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Receptacle	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC
Molex 0015388228		IDC	CIC FFC	25		Phosphor Bronze	0.13 mm	0.3 mm	0.28 mm	22 positions	-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Receptacle	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC
Molex 0015388037		IDC	CIC FFC	25		Phosphor Bronze	0.13 mm	0.3 mm	0.28 mm		-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Receptacle	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC
Molex 0015388200		IDC	CIC FFC	25	Latch Lock	Phosphor Bronze	0.13 mm	0.3 mm	0.28 mm	20	-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Receptacle	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC
Molex 0015388117		IDC	CIC FFC	25		Phosphor Bronze	0.13 mm	0.3 mm	0.28 mm	11	-40 °C	105 ░C	Free Hanging (In-Line)	UL94 V-0	Receptacle	Straight	Tin	150 µin	150 Áin	Black	2.54 mm	0.1 in	250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.83
		10	$ 1.61
		100	$ 1.29

Description

General part information

001538 Series

12 Position CIC, FFC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
