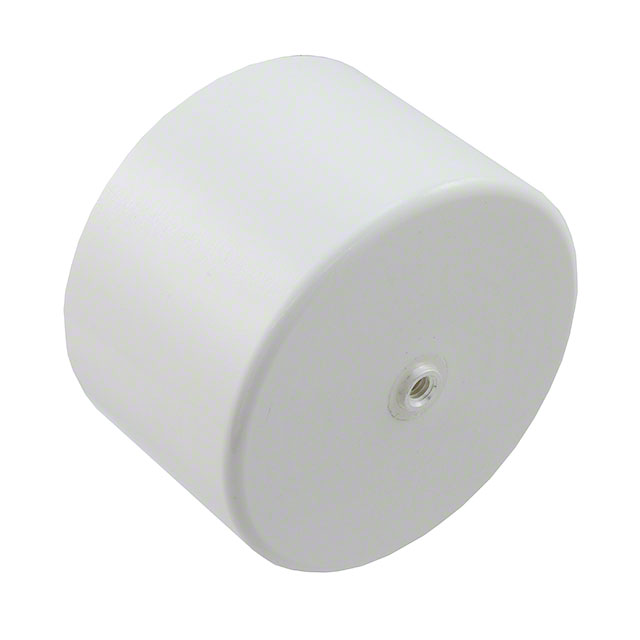

DHSF44F461ZDXB

Obsolete

Murata Power Solutions Inc.

CAPACITOR, CERAMIC, MULTILAYER, 30000V, Z5V, 0.00046UF, CHASSIS MOUNT

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAPACITOR, CERAMIC, MULTILAYER, 30000V, Z5V, 0.00046UF, CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	DHSF44F461ZDXB

Applications	General Purpose
Capacitance	460 pF
Features	High Voltage
Height - Seated (Max) [Max] [z]	35.5 mm
Height - Seated (Max) [Max] [z]	1.398 in
Mounting Type	Requires Holder
Operating Temperature [Max] [custom]	85 °C
Operating Temperature [Min] [custom]	10 °C
Package / Case	Disk, Metal Fitting - Threaded
Size / Dimension [diameter]	0.945 in
Size / Dimension [diameter]	24 mm
Temperature Coefficient	Z5V
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	30 kV
Voltage - Rated	30000 V

Part	Tolerance [Max]	Tolerance [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Capacitance	Voltage - Rated	Voltage - Rated	Applications	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Features
Murata Power Solutions Inc. DHSF44F461ZDXB	80 %	-20 %	0.945 in	24 mm	Disk Metal Fitting - Threaded	460 pF	30 kV	30000 V	General Purpose	Z5V	35.5 mm	1.398 in	Requires Holder	10 °C	85 °C	High Voltage
Murata Power Solutions Inc. DHSF44F362ZT2B	80 %	-20 %	2.362 in	60 mm	Disk Metal Fitting - Threaded	3600 pF	30 kV	30000 V	General Purpose	Z5V	35.5 mm	1.398 in	Requires Holder	10 °C	85 °C	High Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

460 pF -20%, +80% 30000V (30kV) Ceramic Capacitor Z5V Disk, Metal Fitting - Threaded
