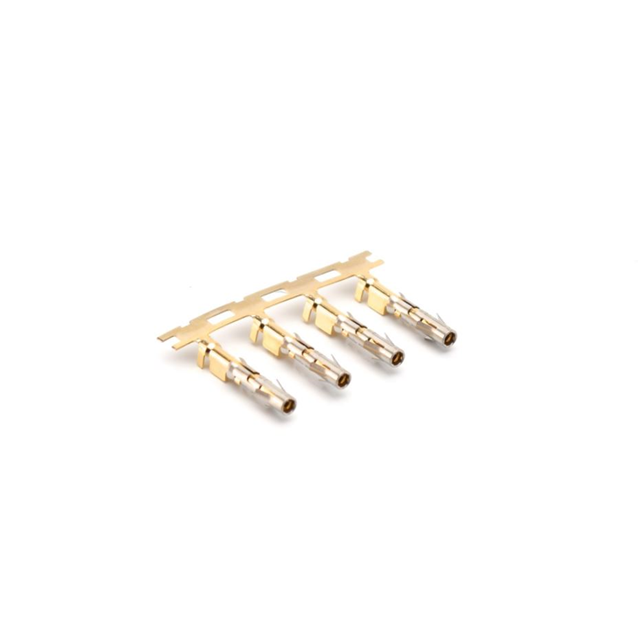

SS14M1G5

Obsolete

Amphenol Sine Systems Corp

CONTACT SOCKET 14-16AWG 16 CRIMP

Search across all available documentation for this part.

Obsolete

Amphenol Sine Systems Corp

CONTACT SOCKET 14-16AWG 16 CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Features	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Termination	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Size	Contact Type	Type	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - mm˛ [Min] [custom]	Wire Gauge or Range - mm˛ [Max] [custom]	Contact Finish Thickness
Amphenol Sine Systems Corp SS14M2N	Insulation Support	14 AWG	16 AWG	Crimp	2.5 mm²	2 mm²	16	Socket	Signal Stamped	Nickel	Copper Alloy
Amphenol Sine Systems Corp SS14M1G5	Insulation Support	14 AWG	16 AWG	Crimp	2.5 mm²	2 mm²	16	Socket	Signal Stamped	Gold	Copper Alloy	0.127 µm	5 µin
Amphenol Sine Systems Corp SS14M1G15	Insulation Support	14 AWG	16 AWG	Crimp	2.5 mm²	2 mm²	16	Socket	Signal Stamped	Gold	Copper Alloy	0.38 µm	15 µin
Amphenol Sine Systems Corp SS14M2G10	Insulation Support	14 AWG	16 AWG	Crimp			16	Socket	Signal Stamped	Gold	Copper Alloy	0.25 Ám	10 Áin	2 mm˛	2.5 mm˛
Amphenol Sine Systems Corp SS14M2F	Insulation Support	14 AWG	16 AWG	Crimp			16	Socket	Signal Stamped	Gold	Copper Alloy			2 mm˛	2.5 mm˛	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Socket Contact 14-16 AWG Size 16 Crimp Gold

Technical documentation and resources

No documents available
