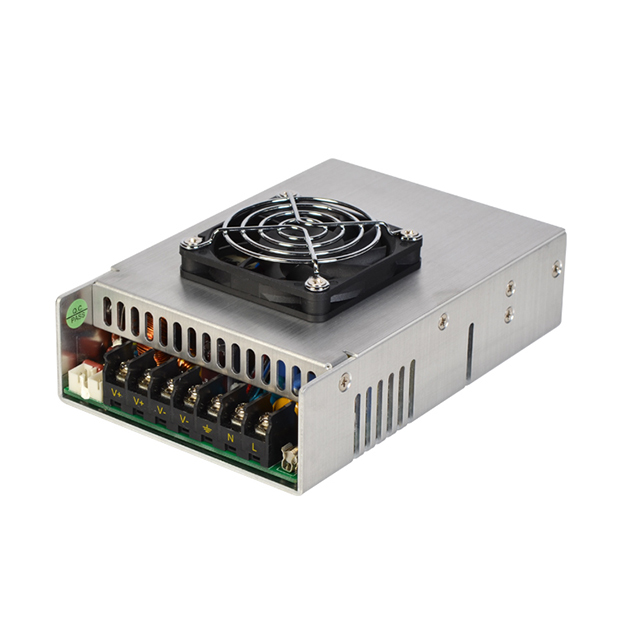

PCM-400-24-CF

Active

CUI Inc.

AC/DC CONVERTER 24V 400W

Deep-Dive with AI

Search across all available documentation for this part.

PCM-400-24-CF

Active

CUI Inc.

AC/DC CONVERTER 24V 400W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCM-400-24-CF

Applications	ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	9.17 A
Efficiency	87 %
Features	PFC, Universal Input, Adjustable Output, Standby Output, Remote On/Off
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	152.4 mm
Size / Dimension [x]	6 in
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	2.15 in
Size / Dimension [z]	54.5 mm
Standard Number	62368-1, 61000-3-3, 61000-3-2, 55024, 60950-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

PCM-400 Series

Part	Type	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Current - Output 1	Voltage - Isolation	Features	Applications	Number of Outputs	Approval Agency	Operating Temperature [Max]	Voltage - Output 1	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Power (Watts)	Current - Output 2	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [z]
CUI Inc. PCM-400-24-CF	Enclosed	55024 60950-1 61000-3-2 61000-3-3 62368-1	4 "	2.15 in	101.6 mm	54.5 mm	152.4 mm	6 in	Chassis Mount	9.17 A	3000 V	Adjustable Output PFC Remote On/Off Standby Output Universal Input	ITE (Commercial)	1	CB Scheme EN IEC SIQ TUV UL	70 °C	24 V	87 %	90 VAC	264 VAC
CUI Inc. PCM-400-D0524-CNF	Enclosed	55024 60950-1 61000-3-2 61000-3-3 62368-1	4 "	1.57 "	101.6 mm	39.9 mm	152.4 mm	6 in	Chassis Mount	36 A	3000 V	Adjustable Output PFC Remote On/Off Standby Output Universal Input	ITE (Commercial)	2	CB Scheme EN IEC SIQ TUV UL	70 °C	5 V	87 %	90 VAC	264 VAC	180 W	320 W	7.5 A	24 V
CUI Inc. PCM-400-54-CNF	Enclosed	55024 60950-1 61000-3-2 61000-3-3 62368-1	4 "	1.57 "	101.6 mm	39.9 mm	152.4 mm	6 in	Chassis Mount	4.07 A	3000 V	Adjustable Output PFC Remote On/Off Standby Output Universal Input	ITE (Commercial)	1	CB Scheme EN IEC SIQ TUV UL	70 °C	54 V	87 %	90 VAC	264 VAC	220 W 400 W
CUI Inc. PCM-400-24-U	Open Frame	55024 60950-1 61000-3-2 61000-3-3 62368-1	4 "	1.5 "	101.6 mm	38.1 mm	152.4 mm	6 in	Chassis Mount	9.17 A	3000 V	Adjustable Output PFC Remote On/Off Universal Input	ITE (Commercial)	1	CB Scheme EN IEC SIQ TUV UL	70 °C	24 V	85 %	90 VAC	264 VAC	220 W 400 W
CUI Inc. PCM-400-48-CFS	Enclosed	55024 60950-1 61000-3-2 61000-3-3 62368-1	4 "	1.6 "			177.8 mm	7.01 in	Chassis Mount	4.58 A	3000 V	Adjustable Output PFC Remote On/Off Standby Output Universal Input	ITE (Commercial)	1	CB Scheme EN IEC SIQ TUV UL	70 °C	48 V	87 %	90 VAC	264 VAC					101.6 mm	40.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 229.59

Description

General part information

PCM-400 Series

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
