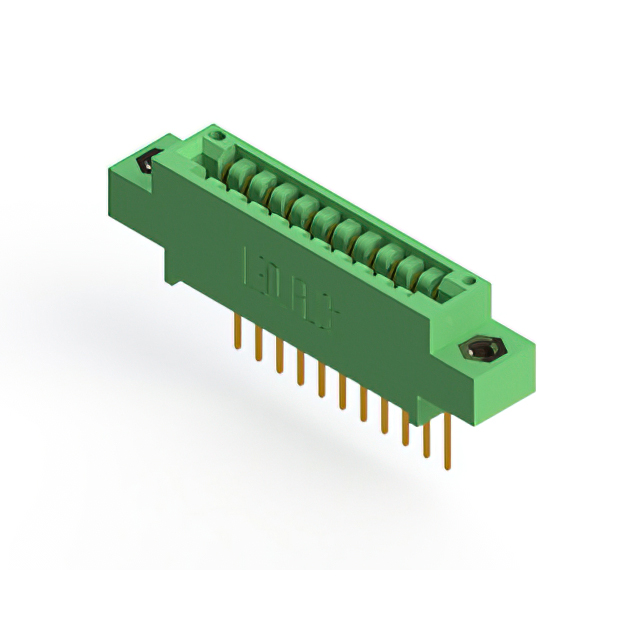

846-011-522-608
ActiveEDAC Inc.
3.18MM 11P -40℃~+125℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-011-522-608
ActiveEDAC Inc.
3.18MM 11P -40℃~+125℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-011-522-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
846-011 Series
| Part | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Number of Positions | Material - Insulation | Termination Rows | Flange Feature | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Gender | Termination | Number of Rows | Contact Material | Card Type | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | 3.25 mm | 0.128 in | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Female | Wire Wrap | 1 | Copper Alloy | Non Specified - Single Edge | Green | |||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Female | Solder | 1 | Copper Alloy | Non Specified - Single Edge | Green | |||||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Female | Solder | 1 | Copper Alloy | Non Specified - Single Edge | Green | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | 3.25 mm | 0.128 in | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | Female | Solder | 1 | Copper Alloy | Non Specified - Single Edge | Green | |||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Female | Solder | 1 | Copper Alloy | Non Specified - Single Edge | Green | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Female | Wire Wrap | 1 | Copper Alloy | Non Specified - Single Edge | Green | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | Female | Solder | 1 | Copper Alloy | Non Specified - Single Edge | Green | Floating Bobbin Top Mount Opening | 0.116 in | 2.95 mm | ||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | 3.25 mm | 0.128 in | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Female | Wire Wrap | 1 | Copper Alloy | Non Specified - Single Edge | Green | Side Mount Opening Unthreaded | ||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Female | Wire Wrap | 1 | Copper Alloy | Non Specified - Single Edge | Green | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | ||
EDAC Inc. | Gold | 125 °C | -40 °C | 0.125 in | 3.18 mm | 11 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 11 | Diallyl Phthalate (DAP) | 1 | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | Female | Solder | 1 | Copper Alloy | Non Specified - Single Edge | Green | M3 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-011 Series
11 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
