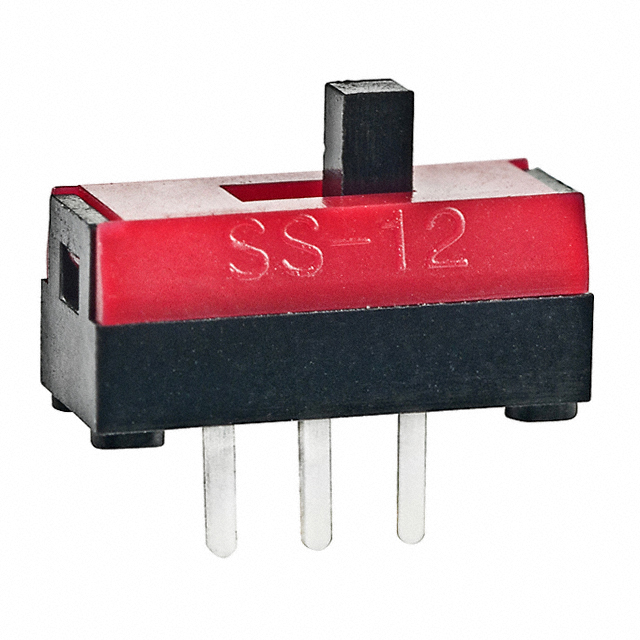

SS12SBP2

Active

NKK Switches

SLIDE SWITCH, SPDT, ON-NONE-ON, THROUGH HOLE, 100 MA

Search across all available documentation for this part.

Active

NKK Switches

SLIDE SWITCH, SPDT, ON-NONE-ON, THROUGH HOLE, 100 MA

Technical Specifications

Parameters and characteristics for this part

Part	Contact Timing	Switch Travel	Circuit	Electrical Life	Switch Function	Actuator Length [x]	Termination Style	Voltage Rating - DC	Actuator Type	Mechanical Life	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Current Rating (Amps)	Contact Finish	Voltage Rating - AC
NKK Switches SS12SBP2	Shorting	2 mm	SPDT	10000 Cycles	On-On	2 mm	PC Pin	30 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole	Phosphor Bronze	100 mA	Silver
NKK Switches SS12SBH4	Shorting	2 mm	SPDT	10000 Cycles	On-On	2.5 mm	PC Pin	28 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole Right Angle	Phosphor Bronze	0.4 VA	Gold	28 V
NKK Switches SS22SBH4	Shorting	2 mm	DPDT	10000 Cycles	On-On	2.5 mm	PC Pin	28 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole Right Angle	Phosphor Bronze	0.4 VA	Gold	28 V
NKK Switches SS22SBP2	Shorting	2 mm	DPDT	10000 Cycles	On-On	2 mm	PC Pin	30 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole	Phosphor Bronze	100 mA	Silver
NKK Switches SS22SBH2	Shorting	2 mm	DPDT	10000 Cycles	On-On	2.5 mm	PC Pin	30 V	Standard	10000 Steps	Nylon Polyamide (PA)	-15 °C	60 °C	Through Hole Right Angle	Phosphor Bronze	100 mA	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Through Hole
