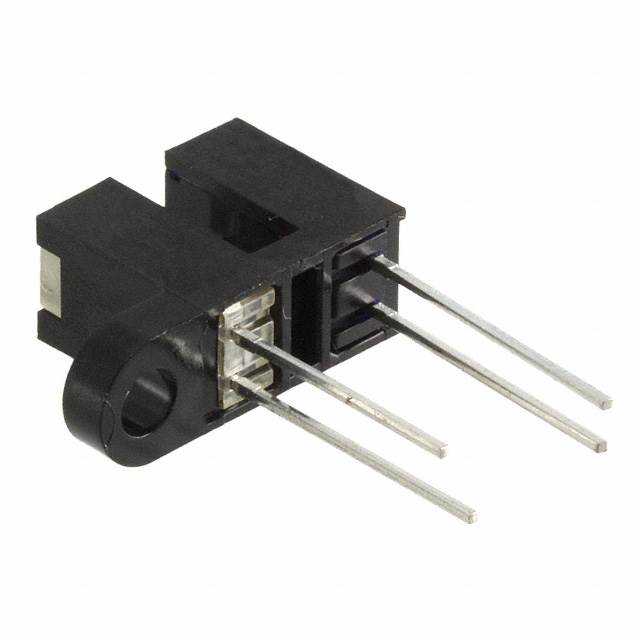

OPB360L51

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	OPB360L51

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Sensing Distance	0.125 "
Sensing Distance	3.18 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Voltage - Collector Emitter Breakdown (Max) [Max]	Type	Current - Collector (Ic) (Max) [Max]	Current - DC Forward (If) (Max)	Sensing Method	Mounting Type	Output Configuration
TT Electronics/Optek Technology OPB360N51	Module Pre-Wired	85 °C	-40 °C	0.125 "	3.18 mm	30 V	Unamplified	30 mA	50 mA	Through-Beam	Chassis Mount	Phototransistor
TT Electronics/Optek Technology OPB360L51	PCB Mount	85 °C	-40 °C	0.125 "	3.18 mm	30 V	Unamplified	30 mA	50 mA	Through-Beam	Through Hole	Phototransistor
TT Electronics/Optek Technology OPB360L11	PCB Mount	85 °C	-40 °C	0.125 "	3.18 mm	30 V	Unamplified	30 mA	50 mA	Through-Beam	Through Hole	Phototransistor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.40

General part information

Optical Sensor Through-Beam 0.125" (3.18mm) Phototransistor PCB Mount
