908-42300-RFX

Active

Amphenol RF

CONN MMCX JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN MMCX JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	908-42300-RFX

Body Finish	Gold
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms

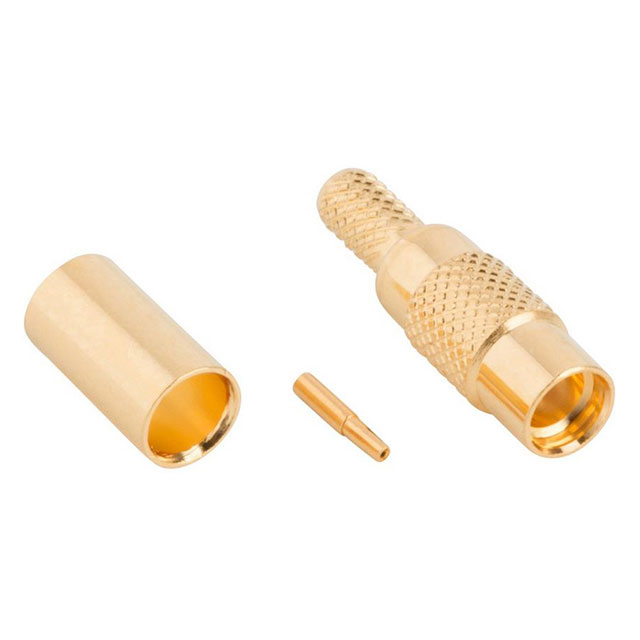

Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Center Contact Plating	Number of Ports	Shield Termination	Center Contact Material	Connector Type	Body Material	Mating Cycles	Body Finish	Cable Group	Connector Style	Fastening Type	Contact Termination	Mounting Type	Includes	Frequency - Max [Max]	Housing Color	Dielectric Material	Impedance
Amphenol RF 908-42300-RFX	Gold	1	Crimp	Beryllium Copper	Female Socket Jack	Brass	500	Gold	188 188A 316 LMR-100 M17/119-RG174 RG-174	MMCX	Snap-On	Crimp	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 7.25

General part information

MMCX Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
