AOZ5276QI-01

Active

Alpha & Omega Semiconductor Inc.

20V/90A SPS NO PREOVP

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

20V/90A SPS NO PREOVP

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ5276QI-01

Applications	Synchronous Buck Converters
Current - Output / Channel	90 A
Current - Peak Output	150 A
Fault Protection	UVLO, Over Temperature, Current Limiting, Short Circuit
Features	Bootstrap Circuit, Diode Emulation
Interface	PWM
Load Type	Capacitive, Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

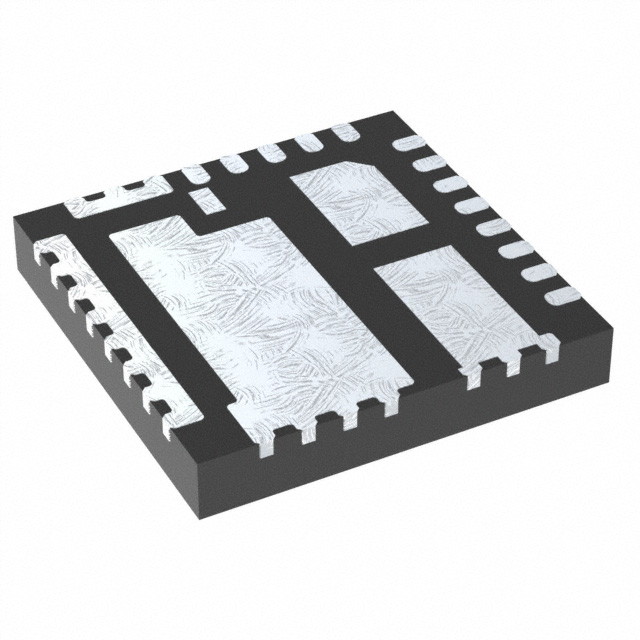

Package / Case	39-PowerWFQFN Module
Supplier Device Package	39-QFN (5x6)
Technology	MOSFET (Metal Oxide)
Voltage - Load [Max]	20 V
Voltage - Load [Min]	3 V
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	3 V

Part	Technology	Current - Output / Channel	Current - Peak Output	Applications	Features	Load Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Mounting Type	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Fault Protection
Alpha & Omega Semiconductor Inc. AOZ5276QI-01	MOSFET (Metal Oxide)	90 A	150 A	Synchronous Buck Converters	Bootstrap Circuit Diode Emulation	Capacitive Inductive	-40 °C	125 ¯C	3 V	20 V	PWM	Surface Mount	39-PowerWFQFN Module	3 V	20 V	39-QFN (5x6)	Current Limiting Over Temperature Short Circuit UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver Synchronous Buck Converters MOSFET (Metal Oxide) 39-QFN (5x6)
