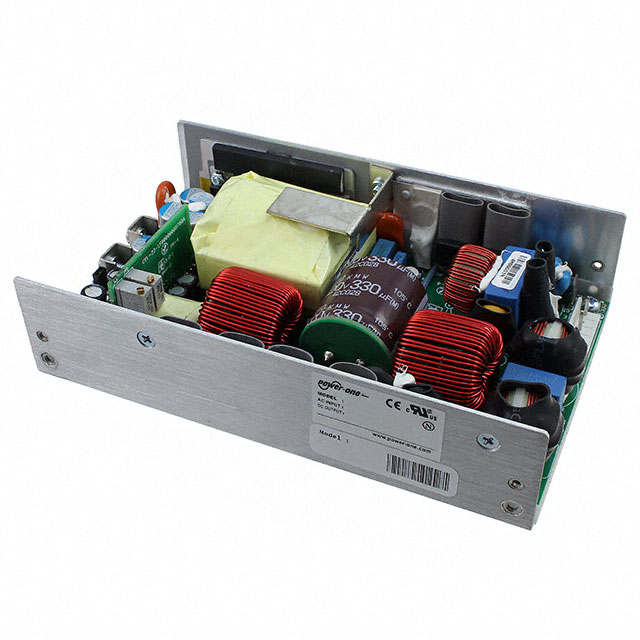

ABC450-1T15G
ObsoleteEOS Power India Private Ltd
AC/DC CONVERTER 15V 250/450W
Deep-Dive with AI
Search across all available documentation for this part.
ABC450-1T15G
ObsoleteEOS Power India Private Ltd
AC/DC CONVERTER 15V 250/450W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABC450-1T15G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 16.6 A |
| Efficiency | 86 % |
| Features | Adjustable Output, Universal Input, Standby Output, Remote Sense, Remote On/Off, PFC, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 250 W, 450 W |
| Size / Dimension [x] | 6.5 in |
| Size / Dimension [x] | 165.1 mm |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4.242 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ABC450 Series
Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
