09380323101
ActiveHARTING Technology Group

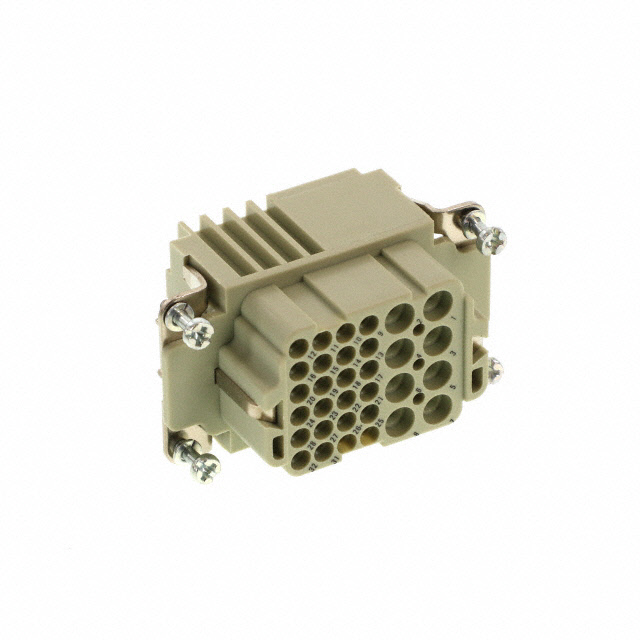

INSERT FEMALE 8+24POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09380323101
ActiveHARTING Technology Group
INSERT FEMALE 8+24POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09380323101 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han®, Han® D |
| Gender | Female |
| Housing Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 HB |
| Number of Positions | 8+24+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Termination Style | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.17 | |
| 10 | $ 50.62 | |||
| 25 | $ 48.68 | |||
| 50 | $ 47.05 | |||
| 100 | $ 44.46 | |||
Description
General part information
09380323 Series
Female Insert without Contacts Gray 8+24+Ground Position Crimp
