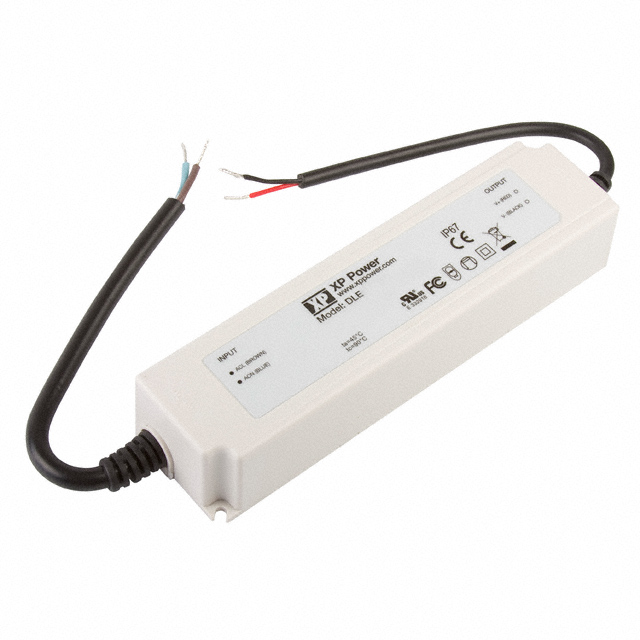

DLE45PS48

Obsolete

XP POWER

LED DRIVER CC/CV AC/DC 34-48V 1A

Search across all available documentation for this part.

Obsolete

XP POWER

LED DRIVER CC/CV AC/DC 34-48V 1A

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Features	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Type	Termination Style	Topology	Approval Agency	Number of Outputs	Ratings	Mounting Type	Voltage - Isolation	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]
XP POWER DLE45PS48	48 W	305 VAC	48 V	34 V	OCP OVP SCP	90 VAC	164.1 mm	6.73 in	1.78 "	1.27 in	32.5 mm	45.3 mm	87 %	Constant Current Voltage	Wire Leads	AC DC Converter	CE TUV UL	1	IP67	Chassis Mount	3750 V	0.9 lb	408.23 g	50 °C	-20 C	1 A
XP POWER DLE45PS24	45 W	305 VAC	24 V	16 V	OCP OVP SCP	90 VAC	164.1 mm	6.73 in	1.78 "	1.27 in	32.5 mm	45.3 mm	85 %	Constant Current Voltage	Wire Leads	AC DC Converter	CE TUV UL	1	IP67	Chassis Mount	3750 V	0.9 lb	408.23 g	50 °C	-20 C	1.85 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1A 34 ~ 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
