OSTOQ247151

Active

On Shore Technology Inc.

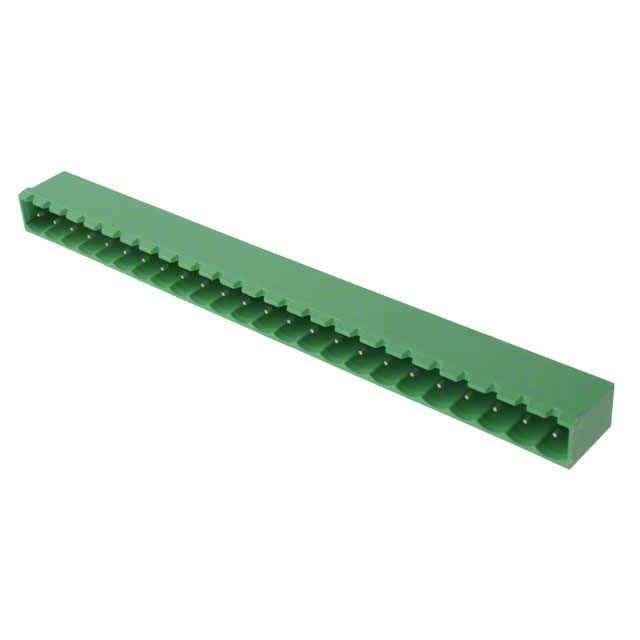

TERM BLOCK HDR 24POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ247151

Active

On Shore Technology Inc.

TERM BLOCK HDR 24POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ247151

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Mounting Type	Solder
Number of Levels	1
Number of Positions	24
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ24 Series

Part	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Header Orientation	Voltage - UL	Material Flammability Rating	Type	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Number of Levels	Housing Material	Features	Number of Positions	Insulation Height [custom]	Insulation Height [custom]
On Shore Technology Inc. OSTOQ243551	3.5 mm	0.138 in	0.15 in	3.81 mm	3.5 mm	0.138 in	90° Right Angle	300 V	UL94 V-0	Header Male Pins Shrouded (4 Side)	Tin	-30 ░C	105 ░C	Solder	Brass	1	Thermoplastic	Mating Flange	24
On Shore Technology Inc. OSTOQ247151	4 mm	0.157 in	0.197 in	5 mm			90° Right Angle	300 V		Header Male Pins Shrouded (4 Side)	Tin	-40 °C	115 °C	Solder	Brass	1	Thermoplastic		24	0.157 in	4 mm
On Shore Technology Inc. OSTOQ247150	4 mm	0.157 in	0.197 in	5 mm			Vertical	300 V		Header Male Pins Shrouded (4 Side)	Tin	-30 ░C	105 ░C	Solder	Brass	1	Thermoplastic		24	0.157 in	4 mm
On Shore Technology Inc. OSTOQ240050	4 mm	0.157 in	0.3 in	7.62 mm			Vertical	300 V		Header Male Pins Shrouded (2 Side)	Tin	-30 ░C	105 ░C	Solder	Brass	1	Thermoplastic		24	0.157 in	4 mm
On Shore Technology Inc. OSTOQ243251	3.5 mm	0.138 in	0.15 in	3.81 mm	3.5 mm	0.138 in	90° Right Angle	300 V		Header Male Pins Shrouded (4 Side)	Tin	-30 ░C	105 ░C	Solder	Brass	1	Thermoplastic		24
On Shore Technology Inc. OSTOQ241250	3.5 mm	0.138 in	0.138 in	3.5 mm	3.5 mm	0.138 in	Vertical	300 V		Header Male Pins Shrouded (4 Side)	Tin	-30 ░C	105 ░C	Solder	Brass	1	Thermoplastic		24
On Shore Technology Inc. OSTOQ245451	4 mm	0.157 in	0.2 in	5.08 mm			90° Right Angle	300 V		Header Male Pins Shrouded (4 Side)	Tin	-40 °C	115 °C	Solder		1	Thermoplastic		24	0.157 in	4 mm
On Shore Technology Inc. OSTOQ240051	4 mm	0.157 in	0.3 in	7.62 mm			90° Right Angle	300 V		Header Male Pins Shrouded (2 Side)	Tin	-30 ░C	105 ░C	Solder	Brass	1	Thermoplastic		24	0.157 in	4 mm
On Shore Technology Inc. OSTOQ245350	4 mm	0.157 in	0.2 in	5.08 mm			Vertical	300 V		Header Male Pins Shrouded (2 Side)	Tin	-30 ░C	105 ░C	Solder	Brass	1	Thermoplastic		24	0.157 in	4 mm
On Shore Technology Inc. OSTOQ240550	4 mm	0.157 in	0.3 in	7.62 mm			Vertical	300 V	UL94 V-0	Header Male Pins Shrouded (4 Side)	Tin	-30 ░C	105 ░C	Solder	Brass	1	Thermoplastic	Mating Flange	24	0.157 in	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.13
		10	$ 2.37
		100	$ 1.93
		1000	$ 1.40
		5000	$ 1.23

Description

General part information

OSTOQ24 Series

24 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Solder
