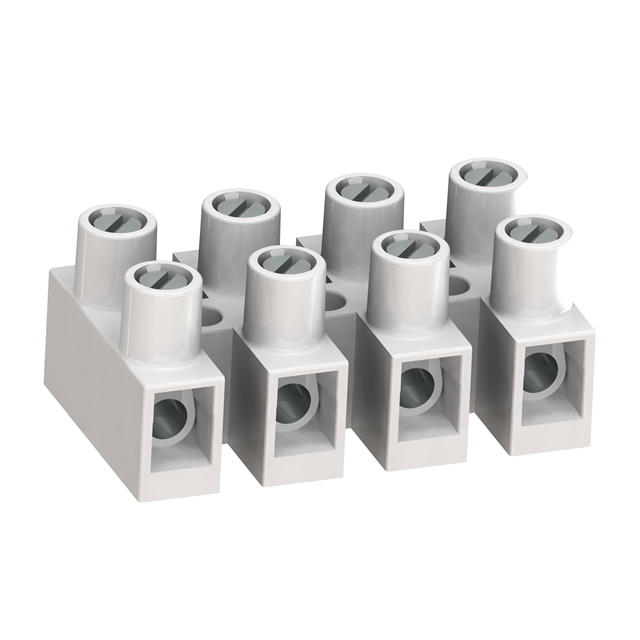

323-HDS/03
ActiveWECO Electrical Connectors Inc.
TERM STRIP EURO; LOW PRO 10MM; D
Deep-Dive with AI
Search across all available documentation for this part.
323-HDS/03
ActiveWECO Electrical Connectors Inc.
TERM STRIP EURO; LOW PRO 10MM; D
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 323-HDS/03 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | White |
| Current Rating (Amps) | 30 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Operating Temperature | 105 C |
| Pitch [x] | 0.394 in |
| Pitch [x] | 10 mm |
| Terminal Block Type | Eurostyle Terminal Strip |
| Terminal Screw Finish | Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.79 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.62 | |||
| 5000 | $ 0.59 | |||
Description
General part information
323 Series
3 Circuit 0.394" (10.00mm) Eurostyle Terminal Strip Connector Screws
