FR20206VBNN

Active

METZ CONNECT USA Inc.

RECEPTACLE, THR, SINGLE ROW, .10

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, THR, SINGLE ROW, .10

Technical Specifications

Parameters and characteristics for this part

Specification	FR20206VBNN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Copper
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Ingress Protection	IP00
Insulation Color	Black
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Number of Positions Loaded	Contact Type	Contact Finish - Mating	Mounting Type	Insulation Material	Ingress Protection	Insulation Height	Insulation Height	Connector Type	Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Fastening Type	Contact Shape
METZ CONNECT USA Inc. FR20206VBNN	All	Female Socket	Gold	Through Hole	Polyamide (PA6) Nylon 6	IP00	0.28 in	7.1 mm	Receptacle	Solder	1	-40 °C	105 ░C	Copper	Flash	Black	0.1 in	2.54 mm	0.114 in	2.9 mm	6	Push-Pull	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

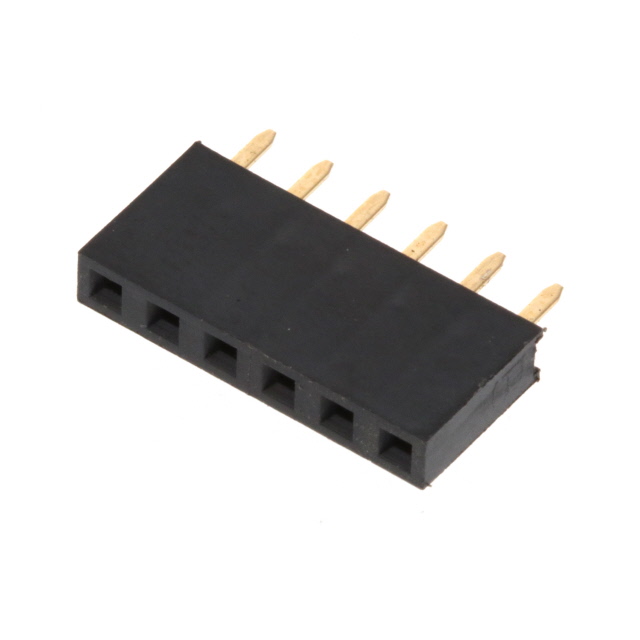

6 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Technical documentation and resources

No documents available
