Q-0401U00050.5M

Active

Amphenol Custom Cable

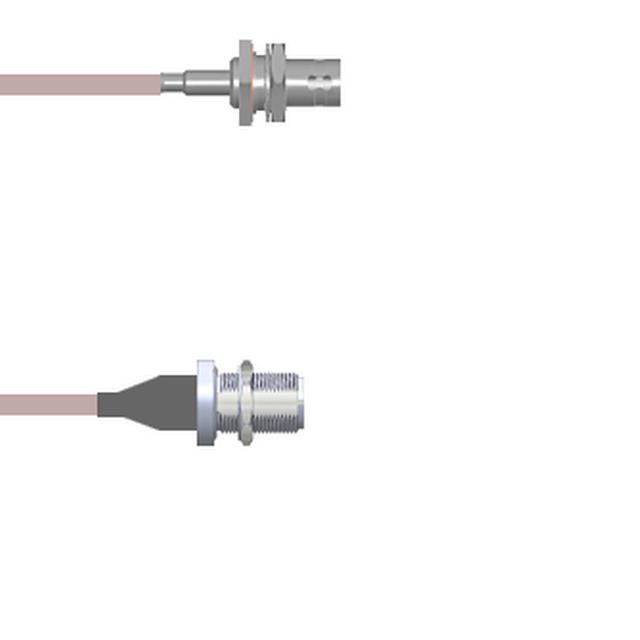

COAX CBL BNC TO N-TYPE 19.6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0401U00050.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 19.6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0401U00050.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0401U0 Series

Part	Length	Length	Cable Type	1st Connector Mounting Type	1st Contact Gender	Style	Frequency - Max [Max]	2nd Contact Gender	Color	Overall Impedance	Features	1st Connector	2nd Connector Mounting Feature	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Feature	Length
Amphenol Custom Cable Q-0401U00030.5M	50 cm	19.69 "	RG-174	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Black	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0401U0003060i	1.5 m	5 '	RG-174	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Black	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut	5 ft
Amphenol Custom Cable Q-0401U00050.5M	50 cm	19.69 "	RG-316	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Copper	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0401U0005048i	1200 mm	48 in	RG-316	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Copper	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut	4 ft
Amphenol Custom Cable Q-0401U00032.5M	2.5 m	98.4 in	RG-174	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Black	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut	8.2 '
Amphenol Custom Cable Q-0401U0003001M	1 m	39.4 in	RG-174	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Black	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut	3.3 ft
Amphenol Custom Cable Q-0401U0005003M	3 m	118.1 in	RG-316	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Copper	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut	9.8 '
Amphenol Custom Cable Q-0401U0003003i	76.2 mm	3 in	RG-174	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Black	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0401U0003003M	3 m	118.1 in	RG-174	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Black	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut	9.8 '
Amphenol Custom Cable Q-0401U0005108i	2.7 m	108 in	RG-316	Panel Mount	Female	BNC to N-Type	4 GHz	Female	Copper	50 Ohms	Shielded	BNC Jack	Bulkhead - Front Side Nut	Panel Mount	N-Type Jack	Bulkhead - Front Side Nut	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 105.34
		25	$ 103.33
		50	$ 101.33
		100	$ 99.32
		250	$ 97.31

Description

General part information

Q-0401U0 Series

Cable Assembly Coaxial BNC to N-Type RG-316 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
