17751

Active

SparkFun Electronics

GNSS MULTI-BAND L1/L2 SURVEYING

Search across all available documentation for this part.

Active

SparkFun Electronics

GNSS MULTI-BAND L1/L2 SURVEYING

Technical Specifications

Parameters and characteristics for this part

Specification	17751

Antenna Type	Dome
Applications	GLONASS, GPS, GNSS, Beidou, Galileo
Features	LNA
Frequency (Center/Band)	1.585 GHz, 1.238 GHz
Frequency Group	UHF
Frequency Group [Max]	2 GHz
Frequency Group [Min]	1 GHz
Frequency Range [Max]	1.278 GHz, 1.615 GHz
Frequency Range [Min]	1.555 GHz, 1.198 GHz
Gain	5 dBi
Height (Max) [Max]	2.185 in
Height (Max) [Max]	55.5 mm
Ingress Protection	IP67
Mounting Type	Screw Mount
Number of Bands	2
RF Family/Standard	Navigation
VSWR	2

Part	Ingress Protection	Applications	Number of Bands	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	RF Family/Standard	Frequency (Center/Band)	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	VSWR	Features	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Gain	Height (Max)	Number of Bands [custom]	Termination
SparkFun Electronics 17751	IP67	Beidou Galileo GLONASS GNSS GPS	2	2.185 in	55.5 mm	Screw Mount	Navigation	1.238 GHz 1.585 GHz	2 GHz	1 GHz	UHF	2	LNA	1.278 GHz 1.615 GHz	1.198 GHz 1.555 GHz	Dome	5 dBi
SparkFun Electronics GPS-17108	IP67	Beidou Galileo GLONASS GNSS GPS QZSS		1.043 in		Magnetic	Navigation	1.176 GHz 1.227 GHz 1.561 GHz 1.575 GHz 1.602 GHz	2 GHz	1 GHz	UHF	2	Cable - 1.5m Filter LNA			Module	-9 dBi 0.6 dBi 2.1 dBi 2.4 dBi 2.9 dBi	26.5 mm	5
SparkFun Electronics GPS-17383	IP67	Beidou Galileo GLONASS GNSS GPS		2.307 in		Connector Mount	Navigation					1.5	LNA			Helical	3 dBi	58.6 mm		SMA
SparkFun Electronics GPS-17751	IP67	Beidou Galileo GLONASS GNSS GPS	2	2.185 in	55.5 mm	Screw Mount	Navigation	1.238 GHz 1.585 GHz	2 GHz	1 GHz	UHF	2	LNA	1.278 GHz 1.615 GHz	1.198 GHz 1.555 GHz	Dome	5 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 253.38

General part information

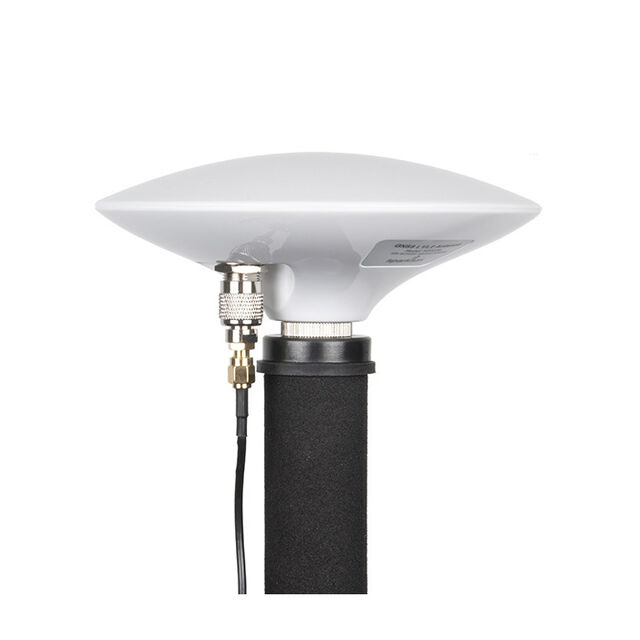

RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Dome TNC Female Screw Mount

Technical documentation and resources

No documents available
