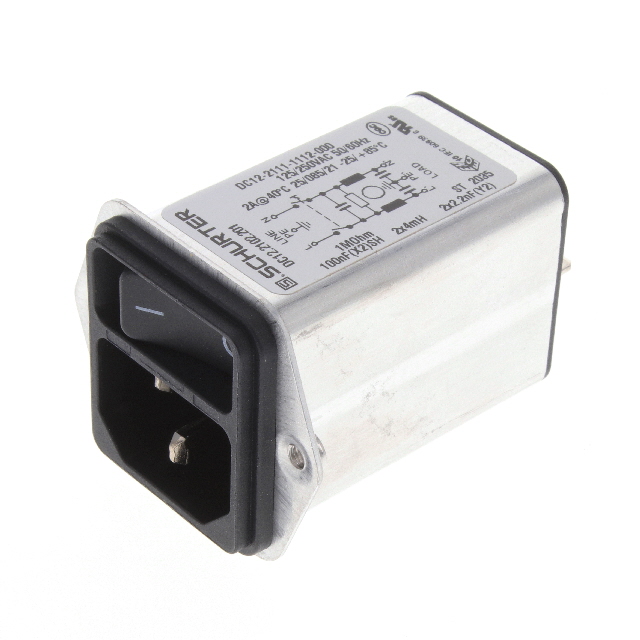

DC12.2102.201

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPEM Filter Overview Datasheet

DC12.2102.201

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsPEM Filter Overview Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC12.2102.201

Accomodates a Fuse	False
Approval Agency	CQC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	2 A
Features	V-Lock Notch, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	30.4 mm
Panel Cutout Dimensions [y]	34.4 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

DC12.4102 Series

AC Power Entry Modules DC12 PWR ENTRY MODUL 2A

Part	Connector Style	Connector Type	Filter Type	Material Flammability Rating	Switch Features	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Mounting Type	Approval Agency	Features	Ingress Protection	Current Rating - Filter	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Number of Positions
SCHURTER Inc. DC12.2102.201	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	CQC cULus ENEC	Shielded V-Lock Notch	IP40	2 A	30.4 mm	34.4 mm
SCHURTER Inc. DC12.1102.001	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	CQC cULus ENEC	Shielded V-Lock Notch	IP40	1 A	29.1 mm	33.1 mm
SCHURTER Inc. DC12.4102.101	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	CQC cULus ENEC	Shielded V-Lock Notch	IP40	6 A	29.4 mm	33.1 mm	3 mm	0.118 in	0.039 in	1 mm
SCHURTER Inc. DC12.1102.003	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	CQC cULus ENEC	Shielded V-Lock Notch	IP40	1 A	29.1 mm	33.1 mm
SCHURTER Inc. DC12.4102.103	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	CQC cULus ENEC	Shielded V-Lock Notch	IP40	6 A	29.4 mm	33.1 mm	3 mm	0.118 in	0.039 in	1 mm
SCHURTER Inc. DC12.1202.001	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	CQC cULus ENEC	Shielded V-Lock Notch	IP40	1 A	29.1 mm	33.1 mm
SCHURTER Inc. DC12.2102.103	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	CQC cULus ENEC	Shielded V-Lock Notch	IP40	2 A	29.4 mm	33.1 mm	3 mm	0.118 in	0.039 in	1 mm
SCHURTER Inc. DC12.1202.101	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	CQC cULus ENEC	Shielded V-Lock Notch	IP40	1 A	29.4 mm	33.1 mm	3 mm	0.118 in	0.039 in	1 mm
SCHURTER Inc. DC12.1202.201	IEC 320-C14	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	CQC cULus ENEC	Shielded V-Lock Notch	IP40	1 A	30.4 mm	34.4 mm
SCHURTER Inc. DC12.1202.131	IEC 320-C18	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	Switch On-Off	10 A	250 VAC	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	CQC cULus ENEC	Shielded V-Lock Notch	IP40	1 A	29.4 mm	33.1 mm	3 mm	0.118 in	0.039 in	1 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.90
		50	$ 22.30
		100	$ 19.99

Description

General part information

DC12.4102 Series

AC Power Entry Modules DC12 PWR ENTRY MODUL 2A

Documents

Technical documentation and resources

PEM Filter Overview

Datasheet
