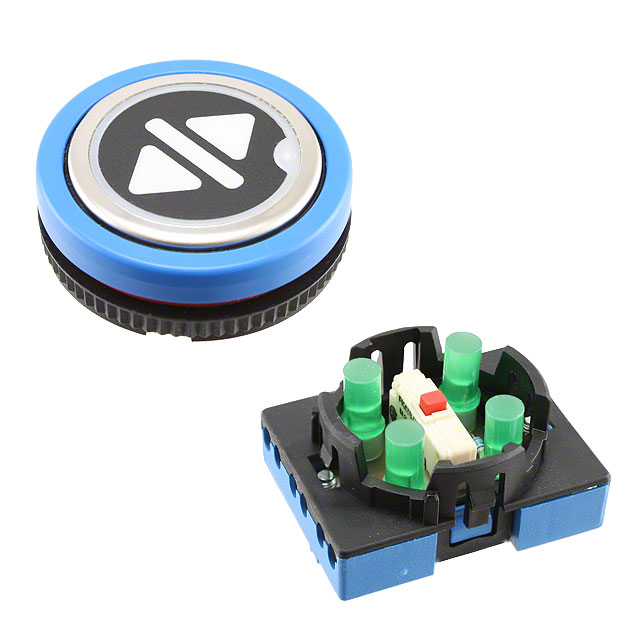

LPI5424G1K15714

Active

APEM

SWITCH PUSHBUTTON DPST 5A 12V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON DPST 5A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LPI5424G1K15714

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	White
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 V
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	38.1 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - DC	12 V

Part	Termination Style	Switch Function	Actuator Type	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Marking	Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Voltage Rating - DC	Mounting Type	Illumination Type, Color	Circuit	Current Rating (Amps)	Electrical Life	Features
APEM LPI5424G1K15714	Screw Terminal	Off-Mom On-Mom	Button Flush Round	1000000 Cycles	38.1 mm	No Marking	Illuminated Standard	24 V	White	12 V	Panel Mount Front	Green LED	DPST-NO/NC	5 A	50000 Cycles	Tactile Feedback

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
