R404767000

Active

Radiall USA, Inc.

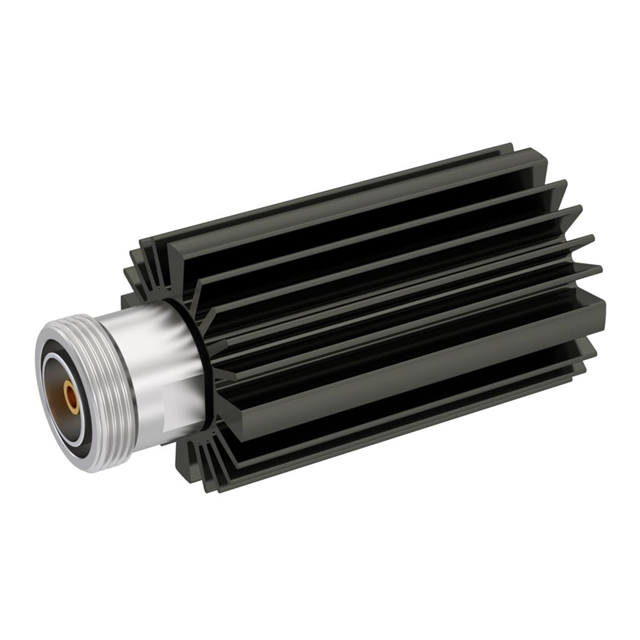

TERMINATION: 7-16 F 6 GHZ 50W

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION: 7-16 F 6 GHZ 50W

Technical Specifications

Parameters and characteristics for this part

Specification	R404767000

Body Finish	White Bronze
Body Material	Brass
Connector Style	7/16 DIN
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Material	Mounting Type	Contact Material	Dielectric Material	Contact Finish	Frequency - Max [Max]	Connector Style	Impedance	Connector Type	Body Finish
Radiall USA, Inc. R404765000	Stainless Steel	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	SMA	50 Ohms	Female Socket Jack
Radiall USA, Inc. R404767000	Brass	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	7/16 DIN	50 Ohms	Female Socket Jack	White Bronze
Radiall USA, Inc. R404760000	Stainless Steel	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	TNC	50 Ohms	Male Pin Plug
Radiall USA, Inc. R404768000	Brass	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	4.3/10	50 Ohms	Male Pin Plug	Nickel
Radiall USA, Inc. R404761000	Brass	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	N Type	50 Ohms	Female Socket Jack	White Bronze
Radiall USA, Inc. R404766000	Brass	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	7/16 DIN	50 Ohms	Male Pin Plug	White Bronze
Radiall USA, Inc. R404764000	Stainless Steel	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	SMA	50 Ohms	Male Pin Plug
Radiall USA, Inc. R404763000	Stainless Steel	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	TNC	50 Ohms	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 652.62

General part information

Terminator Coax Connector Jack, Female Socket 7/16 DIN 50 Ohms

Technical documentation and resources

No documents available
