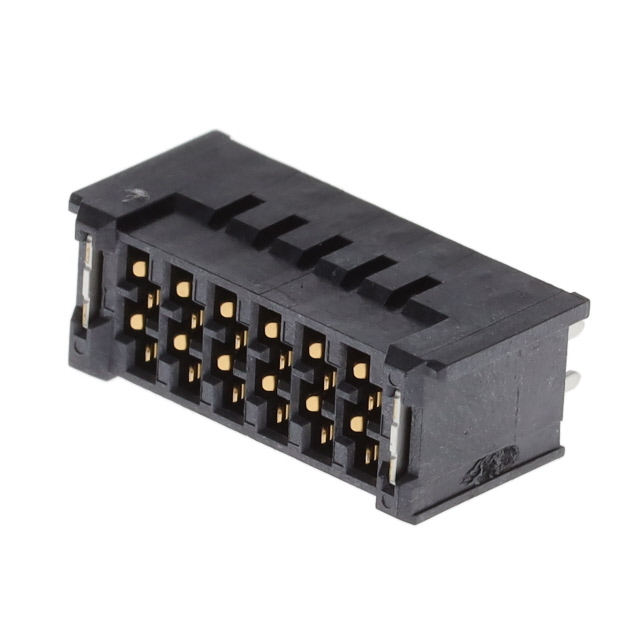

UMPS-06-07.5-L-V-S-W-TR

Active

Samtec Inc.

CONN RCPT 6POS 2.00MM SMD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UMPS-06-07.5-L-V-S-W-TR

Active

Samtec Inc.

CONN RCPT 6POS 2.00MM SMD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UMPS-06-07.5-L-V-S-W-TR

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Features	Solder Retention
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder
Voltage Rating	650 V

UMPS-06 Series

AC/DC PS (ENCLOSED TYPE) \ SERIES UMPS

Part	Contact Material	Mounting Type	Number of Rows	Contact Finish	Color	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Material - Insulation	Termination	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. UMPS-04-05.5-T-V-S-TR	Copper Alloy	Surface Mount	1	Tin	Black	0.079 in	2 mm	105 ░C	-55 °C	650 V	Receptacle Female Blade Sockets	Liquid Crystal Polymer (LCP)	Solder	4
Samtec Inc. UMPS-06-05.5-L-V-S-W-TR	Copper Alloy	Surface Mount	1	Gold	Black	0.079 in	2 mm	125 °C	-55 °C	650 V	Receptacle Female Blade Sockets	Liquid Crystal Polymer (LCP)	Solder	6	Solder Retention	10 Áin	0.25 Ám
Samtec Inc. UMPS-06-07.5-L-V-S-W-TR	Copper Alloy	Surface Mount	1	Gold	Black	0.079 in	2 mm	125 °C	-55 °C	650 V	Receptacle Female Blade Sockets	Liquid Crystal Polymer (LCP)	Solder	6	Solder Retention	10 Áin	0.25 Ám
Samtec Inc. UMPS-03-03.5-L-V-S-W-TR	Copper Alloy	Surface Mount	1	Gold	Black	0.079 in	2 mm	125 °C	-55 °C	650 V	Receptacle Female Blade Sockets	Liquid Crystal Polymer (LCP)	Solder		Solder Retention	10 Áin	0.25 Ám
Samtec Inc. UMPS-06-03.5-L-V-S-W-TR	Copper Alloy	Surface Mount	1	Gold	Black	0.079 in	2 mm	125 °C	-55 °C	650 V	Receptacle Female Blade Sockets	Liquid Crystal Polymer (LCP)	Solder	6	Solder Retention	10 Áin	0.25 Ám
Samtec Inc. UMPS-03-05.5-G-V-S-W-TR	Copper Alloy	Surface Mount	1	Gold	Black	0.079 in	2 mm	125 °C	-55 °C	650 V	Receptacle Female Blade Sockets	Liquid Crystal Polymer (LCP)	Solder		Pick and Place Solder Retention	10 Áin	0.25 Ám
Samtec Inc. UMPS-03-07.5-L-V-S-W-TR	Copper Alloy	Surface Mount	1	Gold	Black	0.079 in	2 mm	125 °C	-55 °C	650 V	Receptacle Female Blade Sockets	Liquid Crystal Polymer (LCP)	Solder		Solder Retention	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.77
		25	$ 5.22
		50	$ 4.88
	Tape & Reel (TR)	350	$ 4.88

Description

General part information

UMPS-06 Series

AC/DC PS (ENCLOSED TYPE) \ SERIES UMPS

Documents

Technical documentation and resources
