Q-3B03S0005001M

Active

Amphenol Custom Cable

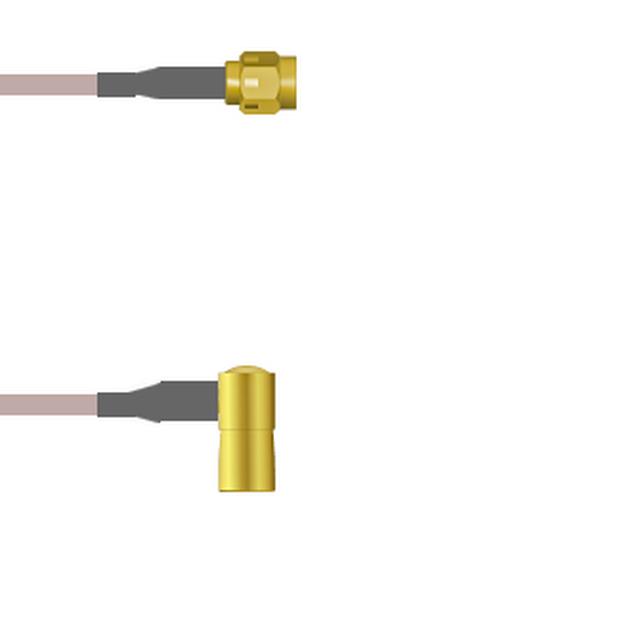

CBL ASSY SMA-SMB PLUG-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-3B03S0005001M

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB PLUG-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B03S0005001M

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	SMA to SMB

Q-3B03S0 Series

Part	Features	2nd Contact Gender	Overall Impedance	1st Connector	2nd Connector	Color	2nd Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	Length	Length	Length	Connector Impedance	Cable Impedance	Style	Cable Type	1st Connector Mounting Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-3B03S0003048I	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male	1200 mm	4 ft	48 in	50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-3B03S0005001M	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Copper	Free Hanging (In-Line)	3 GHz	Male	1 m	3.3 ft	39.4 in	50 Ohms	50 Ohms	SMA to SMB	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-3B03S00032.5M	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male	2.5 m	8.2 '	98.4 in	50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-3B03S0003018I	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male				50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3B03S0003.25M	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male				50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)		250 mm	9.843 "
Amphenol Custom Cable Q-3B03S0003012I	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male	304.8 mm		12 "	50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-3B03S0003108I	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male	2.7 m	9 ft	108 in	50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-3B03S00030.5M	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male	50 cm		19.69 "	50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-3B03S0003072I	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male	1.8 m	6 ft	72 in	50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-3B03S0003036I	Shielded	Female	50 Ohms	SMA Plug	SMB Plug Right Angle	Black	Free Hanging (In-Line)	1 GHz	Male	91.44 cm		36 in	50 Ohms	50 Ohms	SMA to SMB	RG-174	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 94.75
		25	$ 92.89
		50	$ 91.03
		100	$ 89.17
		250	$ 87.31

Description

General part information

Q-3B03S0 Series

Cable Assembly Coaxial SMA to SMB RG-316 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
