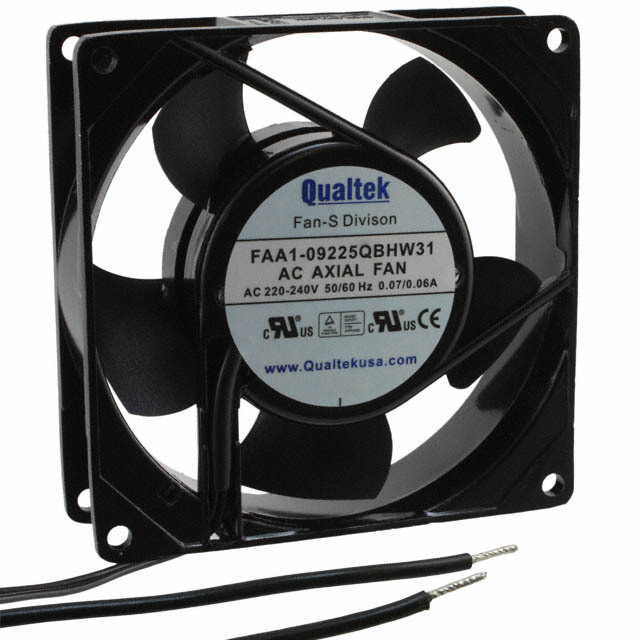

FAA1-09225QBHW31

Active

Qualtek

FAN AXIAL 92X25MM 230VAC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 92X25MM 230VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Frame	Voltage - Rated	Static Pressure	Static Pressure	Termination	Noise	Approval Agency	Air Flow	Air Flow	Weight	Weight	Fan Type	Material - Blade	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Power (Watts)	RPM	Bearing Type
Qualtek FAA1-09225QBHW31	Aluminum	230 VAC	0.116 in H2O	28.9 Pa	2 Wire Leads	30.1 dB(A)	CE cURus TUV	0.952 m³/min	34 CFM	229.97 g	0.507 lb	Tubeaxial	Plastic	60 mA	70 °C	70 °C	-10 °C	-10 °C	25 mm	10 W	2400 RPM	Ball
Qualtek FAA1-09225NBHW31	Aluminum	115 VAC	0.116 in H2O	28.9 Pa	2 Wire Leads	30.1 dB(A)	CE cURus TUV	0.952 m³/min	34 CFM	229.97 g	0.507 lb	Tubeaxial	Plastic		70 °C	70 °C	-10 °C	-10 °C	25 mm	5 W	2400 RPM	Ball
Qualtek FAA1-09225QBHT31	Aluminum	230 VAC	0.116 in H2O	28.9 Pa	2 Terminals	30.1 dB(A)	CE cURus TUV	0.952 m³/min	34 CFM	229.97 g	0.507 lb	Tubeaxial	Plastic	60 mA	70 °C	70 °C	-10 °C	-10 °C	25 mm	10 W	2400 RPM	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Square - 92mm L x 92mm H Ball 34.0 CFM (0.952m³/min) 2 Wire Leads
