Q-0401F0005108i

Active

Amphenol Custom Cable

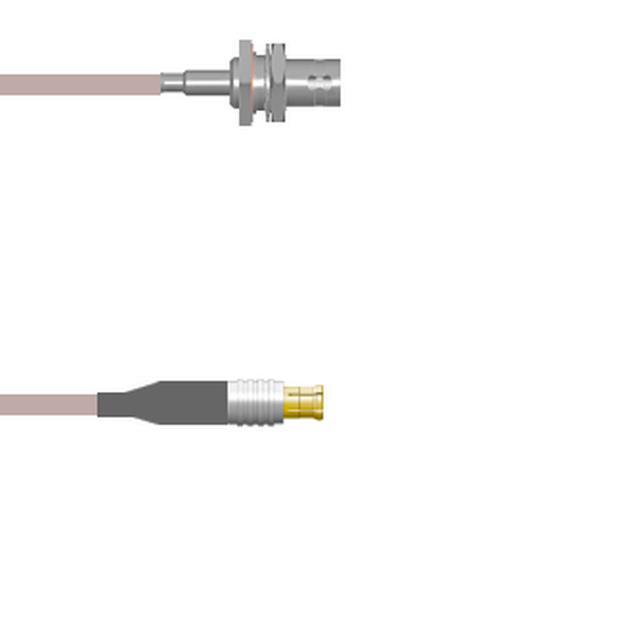

CBL ASSY BNC-MCX JACK-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0401F0005108i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0401F0005108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0401F0 Series

Part	Cable Type	Style	Frequency - Max [Max]	1st Connector	2nd Connector	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	Features	Color	1st Connector Mounting Feature	Length	Length	1st Connector Mounting Type	Overall Impedance	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-0401F0005036i	RG-316	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	91.44 cm	36 in	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0401F0005018i	RG-316	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut			Panel Mount	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0401F0003084i	RG-174	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Black	Bulkhead - Front Side Nut	2.1 m	84 in	Panel Mount	50 Ohms			7 ft
Amphenol Custom Cable Q-0401F0003.25M	RG-174	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Black	Bulkhead - Front Side Nut			Panel Mount	50 Ohms		250 mm		9.843 "
Amphenol Custom Cable Q-0401F0005108i	RG-316	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	2.7 m	108 in	Panel Mount	50 Ohms			9 ft
Amphenol Custom Cable Q-0401F0003.75M	RG-174	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Black	Bulkhead - Front Side Nut	750 mm	29.53 "	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0401F00032.5M	RG-174	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Black	Bulkhead - Front Side Nut	2.5 m	98.4 in	Panel Mount	50 Ohms			8.2 '
Amphenol Custom Cable Q-0401F0003012i	RG-174	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Black	Bulkhead - Front Side Nut	304.8 mm	12 "	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0401F0005001M	RG-316	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	1 m	39.4 in	Panel Mount	50 Ohms			3.3 ft
Amphenol Custom Cable Q-0401F0005009i	RG-316	BNC to MCX	4 GHz	BNC Jack	MCX Plug	Male	Female	Free Hanging (In-Line)	Shielded	Copper	Bulkhead - Front Side Nut	228.6 mm	9 "	Panel Mount	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 101.49
		25	$ 99.49
		50	$ 97.49
		100	$ 95.50
		250	$ 93.50

Description

General part information

Q-0401F0 Series

Cable Assembly Coaxial BNC to MCX RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
