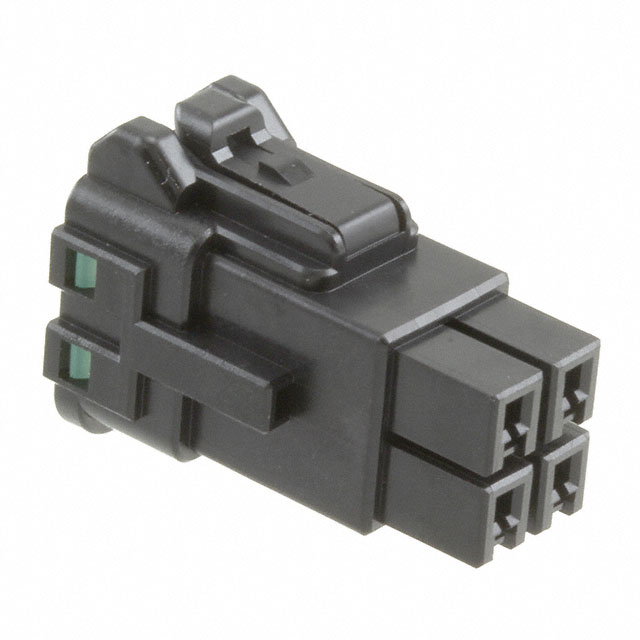

DF63WA-4S-3.96C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 4POS 3.96MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 4POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF63WA-4S-3.96C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof (Mated)
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Row Spacing	0.173 in
Row Spacing	4.4 mm

Part	Contact Termination	Features	Mounting Type	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Row Spacing	Row Spacing	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Fastening Type	Color	Number of Positions
Hirose Electric USA, Inc. DF63WA-4S-3.96C	Crimp	Waterproof (Mated)	Free Hanging (In-Line)	Receptacle	0.156 in	3.96 mm	2	0.173 in	4.4 mm	Polybutylene Terephthalate (PBT)	Female Socket	-40 °C	105 ░C	Contacts Not Included	Latch Lock	Black	4
Hirose Electric USA, Inc. DF63WA-3EP-3.96C	Crimp	Waterproof (Mated)	Free Hanging (In-Line)	Plug	0.156 in	3.96 mm	1			Polybutylene Terephthalate (PBT)	Male Pin	-40 °C	105 ░C	Contacts Not Included	Latch Holder	Black
Hirose Electric USA, Inc. DF63WA-2EP-3.96C	Crimp	Waterproof (Mated)	Free Hanging (In-Line)	Plug	0.156 in	3.96 mm	1			Polybutylene Terephthalate (PBT)	Male Pin	-40 °C	105 ░C	Contacts Not Included	Latch Holder	Black	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Black 0.156" (3.96mm)
