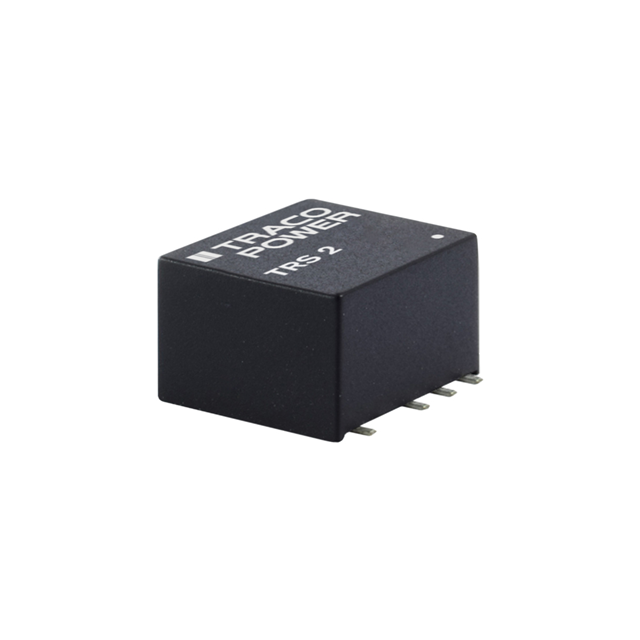

TRS 2-4822

Active

Traco Power

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRS 2-4822

Active

Traco Power

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRS 2-4822

Applications	ITE (Commercial)
Current - Output (Max)	83 mA
Current - Output (Max)	83 mA
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SMD Module
Power (Watts)	2 W
Size / Dimension [x]	11.9 mm
Size / Dimension [x]	0.47 in
Size / Dimension [y]	11.3 mm
Size / Dimension [y]	0.44 in
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.31 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TRS 2 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 1	Features	Voltage - Output 2	Type	Current - Output (Max)	Current - Output (Max)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TRS 2-4822	-40 °C	90 °C	2 W	ITE (Commercial)	36 V	1.6 kV	12 V	SCP	-12 V	Isolated Module	83 mA	83 mA	11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module	Surface Mount	75 V	2
Traco Power TRS 2-2413	-40 °C	90 °C	2 W	ITE (Commercial)	18 V	1.6 kV	15 V	SCP		Isolated Module			11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Surface Mount	36 V	1	84 %	134 mA
Traco Power TRS 2-4813	-40 °C	90 °C	2 W	ITE (Commercial)	36 V	1.6 kV	15 V	SCP		Isolated Module			11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Surface Mount	75 V	1	83 %	134 mA
Traco Power TRS 2-1213	-40 °C	90 °C	2 W	ITE (Commercial)	9 V	1.6 kV	15 V	SCP		Isolated Module			11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Surface Mount	18 V	1	83 %	134 mA
Traco Power TRS 2-0915	-40 °C	90 °C	2 W	ITE (Commercial)	4.5 V	1.6 kV	24 V	SCP		Isolated Module			11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Surface Mount	13.2 V	1		83 mA
Traco Power TRS 2-4815	-40 °C	90 °C	2 W	ITE (Commercial)	36 V	1.6 kV	24 V	SCP		Isolated Module			11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Surface Mount	75 V	1		83 mA
Traco Power TRS 2-1219	-40 °C	90 °C	2 W	ITE (Commercial)	9 V	1.6 kV	9 V	SCP		Isolated Module			11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Surface Mount	18 V	1	80 %	222 mA
Traco Power TRS 2-4823	-40 °C	90 °C	2 W	ITE (Commercial)	36 V	1.6 kV	15 V	SCP	-15 V	Isolated Module		67 mA	11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module	Surface Mount	75 V	2	80 %		67 mA
Traco Power TRS 2-2419	-40 °C	90 °C	2 W	ITE (Commercial)	18 V	1.6 kV	9 V	SCP		Isolated Module			11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Surface Mount	36 V	1	80 %	222 mA
Traco Power TRS 2-1210	-40 °C	90 °C	1.7 W	ITE (Commercial)	9 V	1.6 kV	3.3 V	SCP		Isolated Module			11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Surface Mount	18 V	1	77 %	500 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 18.50
		10	$ 17.00
		25	$ 16.44
		50	$ 16.03
		100	$ 15.63
		250	$ 15.11
		500	$ 14.73

Description

General part information

TRS 2 Series

Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 36V - 75V Input
