W9009

Active

Pulse Electronics

CBL ASSY U.FL-RPSMA JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W9009

Active

Pulse Electronics

CBL ASSY U.FL-RPSMA JACK-PLUG 9"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W9009

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Length	9 "
Length	228.6 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	U.FL (UMCC) to RP-SMA

- Series

Part	Style	1st Connector Mounting Feature	Length	Length	1st Connector	Color	1st Contact Gender	2nd Connector	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Contact Gender	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Group [Max]	Frequency Group [Min]	Power - Max [Max]	Number of Bands	Gain	Frequency (Center/Band)	Return Loss	Height (Max) [Max]	Height (Max)	Antenna Type	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Contact Termination	Connector Type	Number of Ports	Cable Group	Shield Termination	Connector Style	Fastening Type	Convert From (Adapter End)	Center Gender	Adapter Type	Adapter Series	Convert To (Adapter End)	Conversion Type	Housing Color	Mounting Feature
Pulse Electronics W9003	U.FL (UMCC) to RP-SMA	Bulkhead - Front Side Nut	3 in	76.2 mm	RP-SMA Jack	Black	Male	U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Panel Mount	Female	1.13mm OD Coaxial Cable	85 °C	-40 °C
Pulse Electronics Q900B															1 GHz	300 MHz	200 W	1	2 dBic	925 MHz	-10 dB	3.5 inches	88.9 mm	Whip Straight	Magnetic	960 MHz	890 MHz
Pulse Electronics W9009	U.FL (UMCC) to RP-SMA	Bulkhead - Front Side Nut	9 "	228.6 mm	RP-SMA Jack	Black	Male	U.FL (UMCC) Plug Right Angle	Free Hanging (In-Line)	Panel Mount	Female	1.13mm OD Coaxial Cable	85 °C	-40 °C
Pulse Electronics TNCCRIMP																									Free Hanging (In-Line)			Crimp	Male Pin Plug	1	RG-58	Crimp	TNC
Pulse Electronics QB															1 GHz	300 MHz	200 W	1	2 dBic	324 MHz	-10 dB	22 in	558.8 mm	Whip Straight	Magnetic	512 MHz	136 MHz
Pulse Electronics BNC174																									Free Hanging (In-Line)			Crimp	Male Pin Plug	1	RG-174	Crimp	BNC	Bayonet Lock
Pulse Electronics FB	Straight																								Free Hanging (In-Line)									Bayonet Lock Threaded	BNC Plug Male Pin	Male to Male	Plug to Plug	BNC to FME	FME Plug Male Pin	Between Series
Pulse Electronics PL259																									Free Hanging (In-Line)			Solder	Male Pin Plug	1	58 RG-8	Solder	UHF								Silver
Pulse Electronics FSM	Straight																								Free Hanging (In-Line)										SMA Plug Male Pin	Male to Male	Plug to Plug	SMA to FME	FME Plug Male Pin	Between Series
Pulse Electronics NCBJ58																												Crimp	Female Socket Jack	1	RG-58	Crimp	N Type									Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

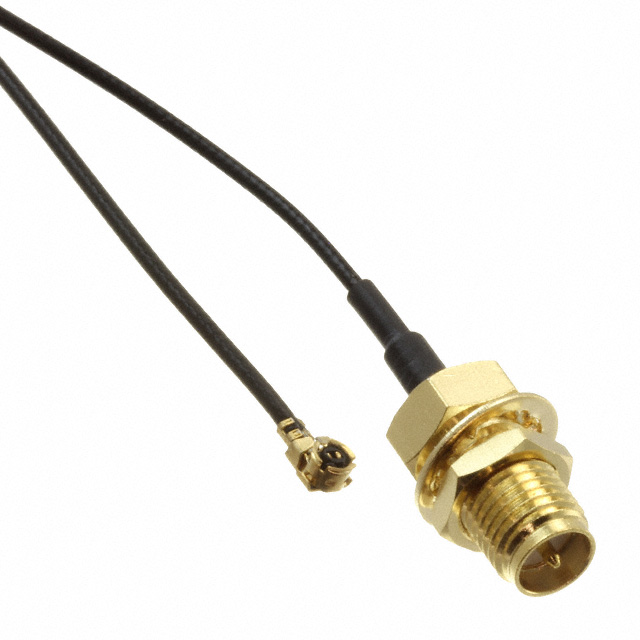

Cable Assembly Coaxial U.FL (UMCC) to RP-SMA 1.13mm OD Coaxial Cable 9.000" (228.60mm)
