Q-1U01A0005009i
ActiveAmphenol Custom Cable

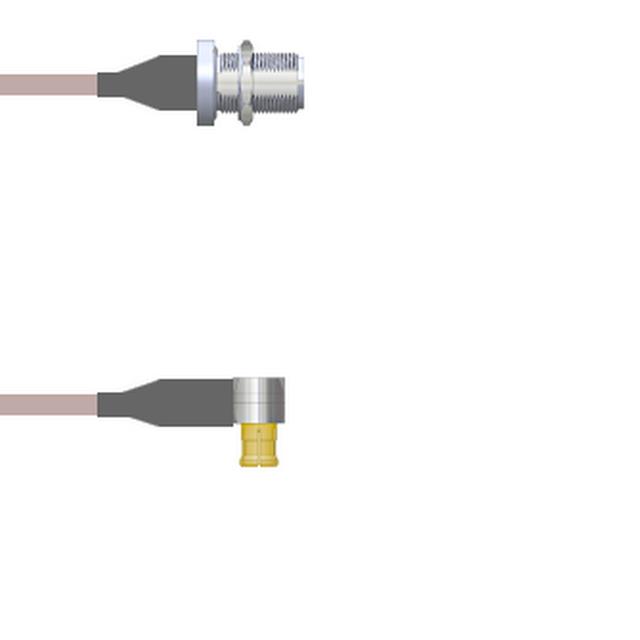

CBL ASSY MCX-NTYPE PLUG-JACK 9"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1U01A0005009i |
|---|---|
| 1st Connector | Right Angle, MCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 9 " |
| Length | 228.6 mm |
| Overall Impedance | 50 Ohms |
| Style | MCX to N-Type |
Q-1U01A0 Series
| Part | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Color | 1st Connector Mounting Type | 1st Connector | 2nd Contact Gender | 2nd Connector | Cable Type | Frequency - Max [Max] | Overall Impedance | Style | Features | Length [x] | Length [x] | 1st Contact Gender | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Black | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-174 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | 457.2 mm | 457.2 mm | Male | |||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Copper | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-316 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 5 ft | 1.5 m | 5 ' | ||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Black | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-174 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 6 ft | 1.8 m | 72 in | ||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Copper | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-316 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 228.6 mm | 9 " | |||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Black | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-174 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 304.8 mm | 12 " | |||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Copper | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-316 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 6 ft | 1.8 m | 72 in | ||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Black | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-174 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 228.6 mm | 9 " | |||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Black | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-174 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 5 ft | 1.5 m | 5 ' | ||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Copper | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-316 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 9 ft | 2.7 m | 108 in | ||
Amphenol Custom Cable | Panel Mount | Bulkhead - Front Side Nut | Black | Free Hanging (In-Line) | MCX Plug Right Angle | Female | N-Type Jack | RG-174 | 6000 MHz | 50 Ohms | MCX to N-Type | Shielded | Male | 4.9 ft | 1.5 m | 59.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 98.63 | |
| 25 | $ 96.75 | |||
| 50 | $ 94.88 | |||
| 100 | $ 93.00 | |||
| 250 | $ 91.12 | |||
Description
General part information
Q-1U01A0 Series
Cable Assembly Coaxial MCX to N-Type RG-316 9.000" (228.60mm)
Documents
Technical documentation and resources
No documents available
