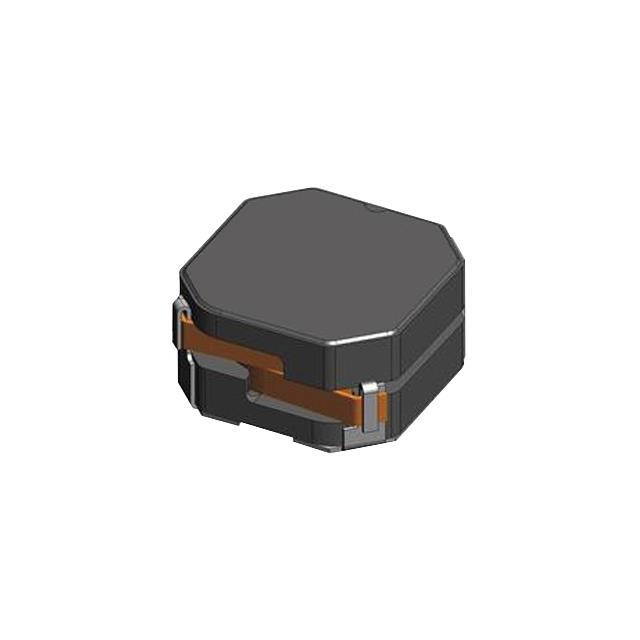

1274AS-H-5R6N=P3

Active

Murata Power Solutions Inc.

GENERAL PURPOSE INDUCTOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1274AS-H-5R6N=P3

Active

Murata Power Solutions Inc.

GENERAL PURPOSE INDUCTOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1274AS-H-5R6N=P3

null

1274AS Series

Part	Type	DC Resistance (DCR) [Max]	Tolerance	Inductance Frequency - Test	Mounting Type	Shielding	Material - Core	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. 1274AS-H-2R2N=P3	Drum Core Wirewound	9.6 mOhm	30 %	100 kHz	Surface Mount	Shielded	Ferrite	8 A	10 mm	0.394 in	10 mm	0.394 "	2.2 µH	Nonstandard	0.197 in	5 mm	12.6 A
Murata Power Solutions Inc. 1274AS-H-5R6N=P3
Murata Power Solutions Inc. 1274AS-H-1R5N=P3	Drum Core Wirewound		30 %	100 kHz	Surface Mount	Shielded	Ferrite	8.9 A	10 mm	0.394 in	10 mm	0.394 "	1.5 µH	Nonstandard	0.197 in	5 mm	15.3 A	7.7 mOhm
Murata Power Solutions Inc. 1274AS-H-330M=P3	Drum Core Wirewound	93.6 mOhm	20 %	100 kHz	Surface Mount	Shielded	Ferrite	2.5 A	10 mm	0.394 in	10 mm	0.394 "	33 µH	Nonstandard	0.197 in	5 mm	3.5 A
Murata Power Solutions Inc. 1274AS-H-150M=P3	Drum Core Wirewound	42.3 mOhm	20 %	100 kHz	Surface Mount	Shielded	Ferrite	3.9 A	10 mm	0.394 in	10 mm	0.394 "	15 µH	Nonstandard	0.197 in	5 mm	5.1 A
Murata Power Solutions Inc. 1274AS-H-6R8N=P3	Drum Core Wirewound	21.3 mOhm	30 %	100 kHz	Surface Mount	Shielded	Ferrite	5.4 A	10 mm	0.394 in	10 mm	0.394 "	6.8 µH	Nonstandard	0.197 in	5 mm	7.5 A		85 °C	-40 °C
Murata Power Solutions Inc. 1274AS-H-4R7N=P3	Drum Core Wirewound	13.5 mOhm	30 %	100 kHz	Surface Mount	Shielded	Ferrite	6.7 A	10 mm	0.394 in	10 mm	0.394 "	4.7 ÁH	Nonstandard	0.197 in	5 mm	9.5 A
Murata Power Solutions Inc. 1274AS-H-100M=P3	Drum Core Wirewound		20 %	100 kHz	Surface Mount	Shielded	Ferrite	4.4 A	10 mm	0.394 in	10 mm	0.394 "	10 µH	Nonstandard	0.197 in	5 mm	6.2 A
Murata Power Solutions Inc. 1274AS-H-3R3N=P3	Drum Core Wirewound	11.4 mOhm	30 %	100 kHz	Surface Mount	Shielded	Ferrite	7.4 A	10 mm	0.394 in	10 mm	0.394 "	3.3 µH	Nonstandard	0.197 in	5 mm	10.8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 0.65

Description

General part information

1274AS Series

Inductor

Documents

Technical documentation and resources
